HYPRE Euclid Preconditioner Wrapper class template. More...

#include <hypre.hpp>

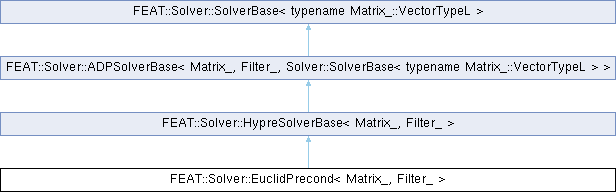

Inheritance diagram for FEAT::Solver::EuclidPrecond< Matrix_, Filter_ >:

Public Types
typedef HypreSolverBase< Matrix_, Filter_ >	BaseClass
	our base-class More...

typedef BaseClass::VectorType	VectorType
	the vector type More...

Public Member Functions
	EuclidPrecond (const Matrix_ &matrix, const Filter_ &filter)

	EuclidPrecond (const String &section_name, const PropertyMap *section, const Matrix_ &matrix, const Filter_ &filter)

virtual Status	apply (Vector_ &vec_cor, const Vector_ &vec_def)=0
	Solver application method. More...

virtual Status	apply (VectorType &vec_cor, const VectorType &vec_def) override

virtual void	done ()
	Finalization method. More...

virtual void	done_numeric () override
	Numeric finalization method. More...

virtual void	done_symbolic () override
	Symbolic Finalization. More...

virtual void	init ()
	Initialization method. More...

virtual void	init_numeric () override
	Numeric Initialization. More...

virtual void	init_symbolic () override
	Symbolic Initialization. More...

virtual String	name () const override
	Returns a descriptive string. More...

Protected Member Functions
void	_download_cor (VectorType &vec_cor)
	Downloads the HYPRE correction vector. More...

void	_download_vec_cor (VectorType &vec_cor)

void	_download_vec_def (VectorType &vec_def)

void	_format_cor ()
	Format the HYPRE correction vector. More...

const Dist::Comm *	_get_comm () const

Index	_get_global_dof_offset () const

const IndexType *	_get_mat_col_idx () const

Index	_get_mat_num_nze () const

const IndexType *	_get_mat_row_ptr () const

const DataType *	_get_mat_vals () const

Index	_get_num_global_dofs () const

Index	_get_num_owned_dofs () const

DataType *	_get_vec_cor_vals (VectorType &vec_cor)

const DataType *	_get_vec_def_vals (const VectorType &vec_def)

DataType *	_get_vec_def_vals (VectorType &vec_def)

void	_upload_def (const VectorType &vec_def)
	Uploads the HYPRE defect vector. More...

void	_upload_vec_cor (const VectorType &vec_cor)

void	_upload_vec_def (const VectorType &vec_def)

Protected Attributes
void *	_core
	a pointer to our opaque core wrapper object More...

double	_dparam [1]
	double parameters: More...

int	_iparam [1]
	integer parameters: More...

void *	_solver
	the HYPRE solver object More...

Detailed Description

template<typename Matrix_, typename Filter_>
class FEAT::Solver::EuclidPrecond< Matrix_, Filter_ >

HYPRE Euclid Preconditioner Wrapper class template.

This class acts as a wrapper around the Euclid preconditioner from the HYPRE library. Euclid is some sort of parallel ILU preconditioner, see the documentation of HYPRE for details.

Todo:: support setting of solver parameters

Author: Peter Zajac

Definition at line 389 of file hypre.hpp.

Member Typedef Documentation

◆ BaseClass

template<typename Matrix_ , typename Filter_ >

typedef HypreSolverBase<Matrix_, Filter_> FEAT::Solver::EuclidPrecond< Matrix_, Filter_ >::BaseClass

our base-class

Definition at line 394 of file hypre.hpp.

◆ VectorType

template<typename Matrix_ , typename Filter_ >

typedef BaseClass::VectorType FEAT::Solver::EuclidPrecond< Matrix_, Filter_ >::VectorType

the vector type

Definition at line 396 of file hypre.hpp.

Constructor & Destructor Documentation

◆ EuclidPrecond() [1/2]

template<typename Matrix_ , typename Filter_ >

FEAT::Solver::EuclidPrecond< Matrix_, Filter_ >::EuclidPrecond	(	const Matrix_ &	matrix,
		const Filter_ &	filter
	)

inlineexplicit

Definition at line 411 of file hypre.hpp.

◆ EuclidPrecond() [2/2]

template<typename Matrix_ , typename Filter_ >

FEAT::Solver::EuclidPrecond< Matrix_, Filter_ >::EuclidPrecond	(	const String &	section_name,
		const PropertyMap *	section,
		const Matrix_ &	matrix,
		const Filter_ &	filter
	)

inlineexplicit

Definition at line 419 of file hypre.hpp.

Member Function Documentation

◆ _download_cor()

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

void FEAT::Solver::HypreSolverBase< Matrix_, Filter_, SolverBase_ >::_download_cor ( VectorType & vec_cor )

inlineprotectedinherited

Downloads the HYPRE correction vector.

This function first downloads the HYPRE vector into its ADP correction vector counterpart and afterwards downloads that into the given correction vector.

Parameters

[out] vec_cor The correction vector to download to.

Definition at line 151 of file hypre.hpp.

References FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_download_vec_cor(), and FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_vec_cor_vals().

◆ _download_vec_cor()

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

void FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_download_vec_cor ( VectorType & vec_cor )

protectedinherited

Returns: Downloads a correction vector.

Referenced by FEAT::Solver::HypreSolverBase< Matrix_, Filter_, SolverBase_ >::_download_cor().

◆ _download_vec_def()

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

void FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_download_vec_def ( VectorType & vec_def )

protectedinherited

Returns: Downloads a defect vector.

◆ _format_cor()

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

void FEAT::Solver::HypreSolverBase< Matrix_, Filter_, SolverBase_ >::_format_cor ( )

inlineprotectedinherited

Format the HYPRE correction vector.

Definition at line 136 of file hypre.hpp.

◆ _get_comm()

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

const Dist::Comm * FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_comm ( ) const

protectedinherited

Returns: A pointer to the underlying communicator

Referenced by FEAT::Solver::HypreSolverBase< Matrix_, Filter_, SolverBase_ >::init_symbolic(), and FEAT::Solver::SuperLU< Matrix_, Filter_ >::init_symbolic().

◆ _get_global_dof_offset()

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

Index FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_global_dof_offset ( ) const

protectedinherited

Returns: The offset of the first global DOF index of this process.

Referenced by FEAT::Solver::HypreSolverBase< Matrix_, Filter_, SolverBase_ >::init_symbolic(), and FEAT::Solver::SuperLU< Matrix_, Filter_ >::init_symbolic().

◆ _get_mat_col_idx()

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

const IndexType * FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_mat_col_idx ( ) const

protectedinherited

Returns: The column-index array of the matrix partition.

Referenced by FEAT::Solver::HypreSolverBase< Matrix_, Filter_, SolverBase_ >::init_symbolic(), and FEAT::Solver::SuperLU< Matrix_, Filter_ >::init_symbolic().

◆ _get_mat_num_nze()

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

Index FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_mat_num_nze ( ) const

protectedinherited

Returns: The number of non-zero entries in this process's matrix partition

◆ _get_mat_row_ptr()

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

const IndexType * FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_mat_row_ptr ( ) const

protectedinherited

Returns: The row-pointer array of the matrix partition.

Referenced by FEAT::Solver::HypreSolverBase< Matrix_, Filter_, SolverBase_ >::init_symbolic(), and FEAT::Solver::SuperLU< Matrix_, Filter_ >::init_symbolic().

◆ _get_mat_vals()

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

const DataType * FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_mat_vals ( ) const

protectedinherited

Returns: The value array of the matrix partition.

Referenced by FEAT::Solver::HypreSolverBase< Matrix_, Filter_, SolverBase_ >::init_numeric(), and FEAT::Solver::SuperLU< Matrix_, Filter_ >::init_numeric().

◆ _get_num_global_dofs()

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

Index FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_num_global_dofs ( ) const

protectedinherited

Returns: The total number of DOFs over all processes.

Referenced by FEAT::Solver::SuperLU< Matrix_, Filter_ >::init_numeric(), and FEAT::Solver::SuperLU< Matrix_, Filter_ >::init_symbolic().

◆ _get_num_owned_dofs()

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

Index FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_num_owned_dofs ( ) const

protectedinherited

Returns: The number of DOFs owned by this process.

Referenced by FEAT::Solver::HypreSolverBase< Matrix_, Filter_, SolverBase_ >::init_symbolic(), and FEAT::Solver::SuperLU< Matrix_, Filter_ >::init_symbolic().

◆ _get_vec_cor_vals()

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

DataType * FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_vec_cor_vals ( VectorType & vec_cor )

protectedinherited

Returns: The data array of the owned correction vector.

Referenced by FEAT::Solver::HypreSolverBase< Matrix_, Filter_, SolverBase_ >::_download_cor().

◆ _get_vec_def_vals() [1/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

const DataType * FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_vec_def_vals ( const VectorType & vec_def )

protectedinherited

Returns: The data array of the owned defect vector.

Referenced by FEAT::Solver::HypreSolverBase< Matrix_, Filter_, SolverBase_ >::_upload_def().

◆ _get_vec_def_vals() [2/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

DataType * FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_vec_def_vals ( VectorType & vec_def )

protectedinherited

Returns: The data array of the owned defect vector.

◆ _upload_def()

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

void FEAT::Solver::HypreSolverBase< Matrix_, Filter_, SolverBase_ >::_upload_def ( const VectorType & vec_def )

inlineprotectedinherited

Uploads the HYPRE defect vector.

This function first uploads the given defect vector into its ADP defect vector counterpart and afterwards uploads that into the HYPRE vector counterpart.

Parameters

[in] vec_def The defect vector to be uploaded from.

Definition at line 124 of file hypre.hpp.

References FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_vec_def_vals(), and FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_upload_vec_def().

◆ _upload_vec_cor()

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

void FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_upload_vec_cor ( const VectorType & vec_cor )

protectedinherited

Returns: Uploads a correction vector.

◆ _upload_vec_def()

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

void FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_upload_vec_def ( const VectorType & vec_def )

protectedinherited

Returns: Uploads a defect vector.

Referenced by FEAT::Solver::HypreSolverBase< Matrix_, Filter_, SolverBase_ >::_upload_def().

◆ apply() [1/2]

template<typename Vector_ >

virtual Status FEAT::Solver::SolverBase< Vector_ >::apply	(	Vector_ &	vec_cor,
		const Vector_ &	vec_def
	)

pure virtualinherited

Solver application method.

This method applies the solver represented by this object onto a given defect vector and returns the corresponding correction vector.

Note: Solvers which derive from the IterativeSolver base class also provide a correct() method which corrects an initial solution instead of starting with the null vector.

Parameters

[out]	vec_cor	The vector that shall receive the solution of the linear system. It is assumed to be allocated, but its numerical contents may be undefined upon calling this method.
[in]	vec_def	The vector that represents the right-hand-side of the linear system to be solved.

Attention: vec_cor and vec_def must not refer to the same vector object!

Returns: A Status code that represents the status of the solution step.

Implemented in FEAT::Solver::SchwarzPrecond< Global::Vector< LocalVector_, Mirror_ >, Global::Filter< LocalFilter_, Mirror_ > >, FEAT::Solver::CuSolverLU, FEAT::Solver::CuSolverQR, FEAT::Solver::ScalePrecond< Vector_, Filter_ >, FEAT::Solver::DiagonalPrecond< Vector_, Filter_ >, FEAT::Solver::MultiGrid< SystemMatrix_, SystemFilter_, TransferOperator_ >, FEAT::Solver::NLOptPrecond< VectorType_, FilterType_ >, FEAT::Solver::AmaVanka< Matrix_, Filter_ >, FEAT::Solver::ConvertPrecond< VectorOuter_, VectorInner_ >, FEAT::Solver::ConvertPrecond< Global::Vector< LocalVectorOuter_, MirrorOuter_ >, Global::Vector< LocalVectorInner_, MirrorInner_ > >, and FEAT::Solver::BFBT< MatrixA_, MatrixB_, MatrixD_, FilterV_, FilterP_ >.

Referenced by FEAT::Solver::solve().

◆ apply() [2/2]

template<typename Matrix_ , typename Filter_ >

virtual Status FEAT::Solver::EuclidPrecond< Matrix_, Filter_ >::apply	(	VectorType &	vec_cor,
		const VectorType &	vec_def
	)

inlineoverridevirtual

Definition at line 455 of file hypre.hpp.

◆ done()

template<typename Vector_ >

virtual void FEAT::Solver::SolverBase< Vector_ >::done ( )

inlinevirtualinherited

Finalization method.

This function performs both the symbolic and numeric finalization, i.e. it simply performs

this->done_numeric();
this->done_symbolic();

Definition at line 283 of file base.hpp.

References FEAT::Solver::SolverBase< Vector_ >::done_numeric(), and FEAT::Solver::SolverBase< Vector_ >::done_symbolic().

◆ done_numeric()

template<typename Matrix_ , typename Filter_ >

virtual void FEAT::Solver::EuclidPrecond< Matrix_, Filter_ >::done_numeric ( )

inlineoverridevirtual

Numeric finalization method.

This method is called to release any data allocated in the numeric initialization step.

Reimplemented from FEAT::Solver::SolverBase< Vector_ >.

Definition at line 446 of file hypre.hpp.

References FEAT::Solver::EuclidPrecond< Matrix_, Filter_ >::_solver.

◆ done_symbolic()

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

virtual void FEAT::Solver::HypreSolverBase< Matrix_, Filter_, SolverBase_ >::done_symbolic ( )

inlineoverridevirtualinherited

Symbolic Finalization.

This function destroys all HYPRE objects managed by this class and resets all auxiliary vectors and pointers.

Reimplemented from FEAT::Solver::SolverBase< Vector_ >.

Definition at line 211 of file hypre.hpp.

References FEAT::Solver::SolverBase< Vector_ >::done_symbolic(), and XASSERT.

◆ init()

template<typename Vector_ >

virtual void FEAT::Solver::SolverBase< Vector_ >::init ( )

inlinevirtualinherited

Initialization method.

This function performs both the symbolic and numeric initialization, i.e. it simply performs

this->init_symbolic();
this->init_numeric();

Definition at line 268 of file base.hpp.

References FEAT::Solver::SolverBase< Vector_ >::init_numeric(), and FEAT::Solver::SolverBase< Vector_ >::init_symbolic().

◆ init_numeric()

template<typename Matrix_ , typename Filter_ >

virtual void FEAT::Solver::EuclidPrecond< Matrix_, Filter_ >::init_numeric ( )

inlineoverridevirtual

Numeric Initialization.

This function uploads the numerical values of the ADP matrix, which is managed by the base-class, to the HYPRE matrix.

Reimplemented from FEAT::Solver::HypreSolverBase< Matrix_, Filter_, SolverBase_ >.

Definition at line 438 of file hypre.hpp.

References FEAT::Solver::HypreSolverBase< Matrix_, Filter_, SolverBase_ >::_core, and FEAT::Solver::HypreSolverBase< Matrix_, Filter_, SolverBase_ >::init_numeric().

◆ init_symbolic()

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

virtual void FEAT::Solver::HypreSolverBase< Matrix_, Filter_, SolverBase_ >::init_symbolic ( )

inlineoverridevirtualinherited

Symbolic Initialization.

This function creates the HYPRE matrix and vector objects and initializes their structure/layout by using the algebraic DOF partitioning (ADP) that is managed by the base-class. This function also performs an initial upload of the matrix and vector values from the ADP structures (because HYPRE requires this), although these values may be undefined (but existent) at this point.

Reimplemented from FEAT::Solver::SolverBase< Vector_ >.

Definition at line 173 of file hypre.hpp.

References FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_comm(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_global_dof_offset(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_mat_col_idx(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_mat_row_ptr(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_num_owned_dofs(), FEAT::Solver::SolverBase< Vector_ >::init_symbolic(), and XASSERT.

◆ name()

template<typename Matrix_ , typename Filter_ >

virtual String FEAT::Solver::EuclidPrecond< Matrix_, Filter_ >::name ( ) const

inlineoverridevirtual

Returns a descriptive string.

Returns: A string describing the solver.

Implements FEAT::Solver::SolverBase< Vector_ >.

Definition at line 433 of file hypre.hpp.

Member Data Documentation

◆ _core

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

void* FEAT::Solver::HypreSolverBase< Matrix_, Filter_, SolverBase_ >::_core

protectedinherited

a pointer to our opaque core wrapper object

Definition at line 107 of file hypre.hpp.

Referenced by FEAT::Solver::ParaSailsPrecond< Matrix_, Filter_ >::init_numeric(), FEAT::Solver::EuclidPrecond< Matrix_, Filter_ >::init_numeric(), and FEAT::Solver::BoomerAMG< Matrix_, Filter_ >::init_numeric().

◆ _dparam

template<typename Matrix_ , typename Filter_ >

double FEAT::Solver::EuclidPrecond< Matrix_, Filter_ >::_dparam[1]

protected

double parameters:

Definition at line 408 of file hypre.hpp.

◆ _iparam

template<typename Matrix_ , typename Filter_ >

int FEAT::Solver::EuclidPrecond< Matrix_, Filter_ >::_iparam[1]

protected

integer parameters:

Definition at line 404 of file hypre.hpp.

◆ _solver

template<typename Matrix_ , typename Filter_ >

void* FEAT::Solver::EuclidPrecond< Matrix_, Filter_ >::_solver

protected

the HYPRE solver object

Definition at line 400 of file hypre.hpp.

Referenced by FEAT::Solver::EuclidPrecond< Matrix_, Filter_ >::done_numeric().

The documentation for this class was generated from the following file:

kernel/solver/hypre.hpp

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ BaseClass

◆ VectorType

Constructor & Destructor Documentation

◆ EuclidPrecond() [1/2]

◆ EuclidPrecond() [2/2]

Member Function Documentation

◆ _download_cor()

◆ _download_vec_cor()

◆ _download_vec_def()

◆ _format_cor()

◆ _get_comm()

◆ _get_global_dof_offset()

◆ _get_mat_col_idx()

◆ _get_mat_num_nze()

◆ _get_mat_row_ptr()

◆ _get_mat_vals()

◆ _get_num_global_dofs()

◆ _get_num_owned_dofs()

◆ _get_vec_cor_vals()

◆ _get_vec_def_vals() [1/2]

◆ _get_vec_def_vals() [2/2]

◆ _upload_def()

◆ _upload_vec_cor()

◆ _upload_vec_def()

◆ apply() [1/2]

◆ apply() [2/2]

◆ done()

◆ done_numeric()

◆ done_symbolic()

◆ init()

◆ init_numeric()

◆ init_symbolic()

◆ name()

Member Data Documentation

◆ _core

◆ _dparam

◆ _iparam

◆ _solver
