Additive Macro-wise Matrix-based Vanka preconditioner/smoother. More...

#include <amavanka.hpp>

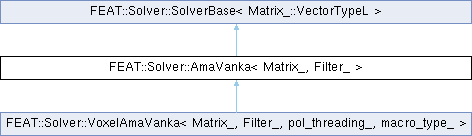

Inheritance diagram for FEAT::Solver::AmaVanka< Matrix_, Filter_ >:

Public Types
typedef Solver::SolverBase< typename Matrix_::VectorTypeL >	BaseClass
	our base-class More...

typedef Matrix_::DataType	DataType
	our data type More...

typedef Matrix_::IndexType	IndexType
	our index type More...

typedef Matrix_::VectorTypeL	VectorType
	our vector type More...

Public Member Functions
	AmaVanka (const Matrix_ &matrix, const Filter_ &filter, const DataType omega=DataType(1), const Index num_steps=Index(1))
	Constructor. More...

virtual Status	apply (VectorType &vec_x, const VectorType &vec_b) override
	applies the preconditioner More...

std::size_t	bytes () const
	Returns the total number of bytes currently allocated in this object. More...

void	clear_macro_dofs ()
	Clears the macro dofs graphs. More...

bool	compare (const AmaVanka *other) const

std::size_t	data_size () const
	Returns the total data size used by the AmaVanka smoother. More...

virtual void	done ()
	Finalization method. More...

virtual void	done_numeric ()
	Numeric finalization method. More...

virtual void	done_symbolic () override
	Releases the symbolic factorization data. More...

virtual void	init ()
	Initialization method. More...

virtual void	init_numeric () override
	Performs numeric factorization. More...

virtual void	init_symbolic () override
	Performs symbolic factorization. More...

virtual String	name () const override
	Returns the name of the solver. More...

void	push_macro_dofs (Adjacency::Graph &&dofs)
	Pushes the dofs-at-macro graph of the next block. More...

void	reset_timings ()
	Resets the internal stop watches for time measurement. More...

void	set_num_steps (Index num_steps)
	Sets the number of smoothing steps. More...

void	set_omega (DataType omega)
	Sets the damping parameter omega. More...

void	set_skip_singular (bool skip_sing)
	Sets whether singular macros are to be skipped. More...

double	time_apply () const
	Returns the total accumulated time for the solver application. More...

double	time_init_numeric () const
	Returns the total accumulated time for numeric initialization. More...

double	time_init_symbolic () const
	Returns the total accumulated time for symbolic initialization. More...

Protected Types
typedef Intern::AmaVankaMatrixHelper< Matrix_ >::VankaMatrix	VankaMatrixType
	the type of our Vanka matrix More...

Protected Attributes
bool	_auto_macros
	deduct macro dofs automatically? More...

std::vector< Adjacency::Graph >	_dof_macros

const Filter_ &	_filter
	the system filter More...

std::vector< Adjacency::Graph >	_macro_dofs
	the DOF-macro graphs More...

std::vector< int >	_macro_mask
	the macro mask More...

const Matrix_ &	_matrix
	the system matrix More...

Index	_num_steps
	number of steps More...

int	_num_threads
	number of threads for numeric factorization More...

DataType	_omega
	damping parameter More...

bool	_skip_singular
	skip singular macros? More...

VankaMatrixType	_vanka
	the Vanka preconditioner matrix More...

VectorType	_vec_c
	temporary vectors More...

VectorType	_vec_d

StopWatch	watch_apply

StopWatch	watch_init_numeric

StopWatch	watch_init_symbolic

Detailed Description

template<typename Matrix_, typename Filter_>
class FEAT::Solver::AmaVanka< Matrix_, Filter_ >

Additive Macro-wise Matrix-based Vanka preconditioner/smoother.

This class implements an additive macro-wise Vanka smoother, which stores its pre-computed operator as a sparse matrix, so that each application of the Vanka smoother consists of only one sparse matrix-vector multiplication.

This class supports a whole batch of different matrix types:

LAFEM::SparseMatrixCSR
LAFEM::SparseMatrixBCSR
LAFEM::SaddlePointMatrix with sub-blocks of type
- LAFEM::SparseMatrixBCSR
LAFEM::TupleMatrix with sub-blocks of type
- LAFEM::SparseMatrixCSR
- LAFEM::SparseMatrixBCSR

Attention: In contrast to the Solver::Vanka class, one must specify the macros for the Vanka smoother for each finite element space which is used to discretize the individual blocks of the solution space by using the push_macro_dofs() function. The only exception is for the LAFEM::SaddlePointMatrix, as for this matrix type, there exists an automatic macro deduction algorithm, which will compute the element-wise macro graphs based on the sparsity patterns of the B and D matrices, resp.

Example: Assume that your solution space is the usual velocity-pressure space pair used in a Stokes system, then you need to add the dof-mapping graphs of both the velocity and the pressure space to the smoother in the following way:

auto vanka = Solver::new_amavanka(system_matrix, system_filter);
vanka->push_macro_dofs(Space::DofMappingRenderer::render(space_velocity));
vanka->push_macro_dofs(Space::DofMappingRenderer::render(space_pressure));

If your solution space has other components (such as e.g. temperature, density or stress), then you have to add the rendered dof-mappings of those spaces in the correct order as well.

Note: In the case of a LAFEM::SaddlePointMatrix, the smoother implemented in this class is mathematically equivalent to a Solver::Vanka smoother of type Solver::VankaType::block_full_add.

Author: Peter Zajac

Definition at line 63 of file amavanka.hpp.

Member Typedef Documentation

◆ BaseClass

template<typename Matrix_ , typename Filter_ >

typedef Solver::SolverBase<typename Matrix_::VectorTypeL> FEAT::Solver::AmaVanka< Matrix_, Filter_ >::BaseClass

our base-class

Definition at line 68 of file amavanka.hpp.

◆ DataType

template<typename Matrix_ , typename Filter_ >

typedef Matrix_::DataType FEAT::Solver::AmaVanka< Matrix_, Filter_ >::DataType

our data type

Definition at line 71 of file amavanka.hpp.

◆ IndexType

template<typename Matrix_ , typename Filter_ >

typedef Matrix_::IndexType FEAT::Solver::AmaVanka< Matrix_, Filter_ >::IndexType

our index type

Definition at line 73 of file amavanka.hpp.

◆ VankaMatrixType

template<typename Matrix_ , typename Filter_ >

typedef Intern::AmaVankaMatrixHelper<Matrix_>::VankaMatrix FEAT::Solver::AmaVanka< Matrix_, Filter_ >::VankaMatrixType

protected

the type of our Vanka matrix

Definition at line 79 of file amavanka.hpp.

◆ VectorType

template<typename Matrix_ , typename Filter_ >

typedef Matrix_::VectorTypeL FEAT::Solver::AmaVanka< Matrix_, Filter_ >::VectorType

our vector type

Definition at line 75 of file amavanka.hpp.

Constructor & Destructor Documentation

◆ AmaVanka()

template<typename Matrix_ , typename Filter_ >

FEAT::Solver::AmaVanka< Matrix_, Filter_ >::AmaVanka	(	const Matrix_ &	matrix,
		const Filter_ &	filter,
		const DataType	omega = `DataType(1)`,
		const Index	num_steps = `Index(1)`
	)

inlineexplicit

Constructor.

Parameters

[in]	matrix	The saddle-point system matrix.
[in]	filter	The system filter.
[in]	omega	The damping parameter.
[in]	num_steps	The number of smoothing steps to be performed.

Definition at line 128 of file amavanka.hpp.

Member Function Documentation

◆ apply()

template<typename Matrix_ , typename Filter_ >

virtual Status FEAT::Solver::AmaVanka< Matrix_, Filter_ >::apply	(	VectorType &	vec_x,
		const VectorType &	vec_b
	)

inlineoverridevirtual

applies the preconditioner

Implements FEAT::Solver::SolverBase< Matrix_::VectorTypeL >.

Definition at line 444 of file amavanka.hpp.

References FEAT::Solver::AmaVanka< Matrix_, Filter_ >::_num_steps, FEAT::StopWatch::start(), FEAT::StopWatch::stop(), and FEAT::Solver::success.

◆ bytes()

template<typename Matrix_ , typename Filter_ >

std::size_t FEAT::Solver::AmaVanka< Matrix_, Filter_ >::bytes ( ) const

inline

Returns the total number of bytes currently allocated in this object.

Definition at line 212 of file amavanka.hpp.

References FEAT::Solver::AmaVanka< Matrix_, Filter_ >::_macro_dofs, FEAT::Solver::AmaVanka< Matrix_, Filter_ >::_vanka, and FEAT::Solver::AmaVanka< Matrix_, Filter_ >::_vec_c.

◆ clear_macro_dofs()

template<typename Matrix_ , typename Filter_ >

void FEAT::Solver::AmaVanka< Matrix_, Filter_ >::clear_macro_dofs ( )

inline

Clears the macro dofs graphs.

Definition at line 143 of file amavanka.hpp.

References FEAT::Solver::AmaVanka< Matrix_, Filter_ >::_auto_macros.

◆ compare()

template<typename Matrix_ , typename Filter_ >

bool FEAT::Solver::AmaVanka< Matrix_, Filter_ >::compare ( const AmaVanka< Matrix_, Filter_ > * other ) const

inline

Definition at line 472 of file amavanka.hpp.

◆ data_size()

template<typename Matrix_ , typename Filter_ >

std::size_t FEAT::Solver::AmaVanka< Matrix_, Filter_ >::data_size ( ) const

inline

Returns the total data size used by the AmaVanka smoother.

Returns: The total data size, i.e. the total number of floating point values used in the factorization.

Definition at line 230 of file amavanka.hpp.

References FEAT::Solver::AmaVanka< Matrix_, Filter_ >::_vanka.

◆ done()

virtual void FEAT::Solver::SolverBase< Matrix_::VectorTypeL >::done ( )

inlinevirtualinherited

Finalization method.

This function performs both the symbolic and numeric finalization, i.e. it simply performs

this->done_numeric();
this->done_symbolic();

Definition at line 283 of file base.hpp.

◆ done_numeric()

virtual void FEAT::Solver::SolverBase< Matrix_::VectorTypeL >::done_numeric ( )

inlinevirtualinherited

Numeric finalization method.

This method is called to release any data allocated in the numeric initialization step.

Reimplemented in FEAT::Solver::GenericUmfpack< Matrix_ >.

Definition at line 246 of file base.hpp.

◆ done_symbolic()

template<typename Matrix_ , typename Filter_ >

virtual void FEAT::Solver::AmaVanka< Matrix_, Filter_ >::done_symbolic ( )

inlineoverridevirtual

Releases the symbolic factorization data.

Reimplemented from FEAT::Solver::SolverBase< Matrix_::VectorTypeL >.

Reimplemented in FEAT::Solver::VoxelAmaVanka< Matrix_, Filter_, pol_threading_, macro_type_ >.

Definition at line 322 of file amavanka.hpp.

References FEAT::Solver::SolverBase< typename Matrix_::VectorTypeL >::done_symbolic().

Referenced by FEAT::Solver::VoxelAmaVanka< Matrix_, Filter_, pol_threading_, macro_type_ >::done_symbolic().

◆ init()

virtual void FEAT::Solver::SolverBase< Matrix_::VectorTypeL >::init ( )

inlinevirtualinherited

Initialization method.

This function performs both the symbolic and numeric initialization, i.e. it simply performs

this->init_symbolic();
this->init_numeric();

Definition at line 268 of file base.hpp.

◆ init_numeric()

template<typename Matrix_ , typename Filter_ >

virtual void FEAT::Solver::AmaVanka< Matrix_, Filter_ >::init_numeric ( )

inlineoverridevirtual

Performs numeric factorization.

Reimplemented from FEAT::Solver::SolverBase< Matrix_::VectorTypeL >.

Reimplemented in FEAT::Solver::VoxelAmaVanka< Matrix_, Filter_, pol_threading_, macro_type_ >.

Definition at line 338 of file amavanka.hpp.

References FEAT::Solver::SolverBase< typename Matrix_::VectorTypeL >::init_numeric(), FEAT::Math::invert_matrix(), FEAT::StopWatch::start(), FEAT::StopWatch::stop(), and XASSERTM.

◆ init_symbolic()

template<typename Matrix_ , typename Filter_ >

virtual void FEAT::Solver::AmaVanka< Matrix_, Filter_ >::init_symbolic ( )

inlineoverridevirtual

Performs symbolic factorization.

Reimplemented from FEAT::Solver::SolverBase< Matrix_::VectorTypeL >.

Reimplemented in FEAT::Solver::VoxelAmaVanka< Matrix_, Filter_, pol_threading_, macro_type_ >.

Definition at line 276 of file amavanka.hpp.

References FEAT::Solver::AmaVanka< Matrix_, Filter_ >::_macro_dofs, FEAT::Solver::SolverBase< typename Matrix_::VectorTypeL >::init_symbolic(), FEAT::StopWatch::start(), FEAT::StopWatch::stop(), FEAT::Adjacency::transpose, XABORTM, XASSERT, and XASSERTM.

Referenced by FEAT::Solver::VoxelAmaVanka< Matrix_, Filter_, pol_threading_, macro_type_ >::init_symbolic().

◆ name()

template<typename Matrix_ , typename Filter_ >

virtual String FEAT::Solver::AmaVanka< Matrix_, Filter_ >::name ( ) const

inlineoverridevirtual

Returns the name of the solver.

Implements FEAT::Solver::SolverBase< Matrix_::VectorTypeL >.

Reimplemented in FEAT::Solver::VoxelAmaVanka< Matrix_, Filter_, pol_threading_, macro_type_ >.

Definition at line 270 of file amavanka.hpp.

◆ push_macro_dofs()

template<typename Matrix_ , typename Filter_ >

void FEAT::Solver::AmaVanka< Matrix_, Filter_ >::push_macro_dofs ( Adjacency::Graph && dofs )

inline

Pushes the dofs-at-macro graph of the next block.

Parameters

[in] dofs The dofs-at-macro graph of the block.

Definition at line 155 of file amavanka.hpp.

References FEAT::Solver::AmaVanka< Matrix_, Filter_ >::_auto_macros, FEAT::Solver::AmaVanka< Matrix_, Filter_ >::_macro_dofs, and XABORTM.

◆ reset_timings()

template<typename Matrix_ , typename Filter_ >

void FEAT::Solver::AmaVanka< Matrix_, Filter_ >::reset_timings ( )

inline

Resets the internal stop watches for time measurement.

Definition at line 238 of file amavanka.hpp.

References FEAT::StopWatch::reset().

◆ set_num_steps()

template<typename Matrix_ , typename Filter_ >

void FEAT::Solver::AmaVanka< Matrix_, Filter_ >::set_num_steps ( Index num_steps )

inline

Sets the number of smoothing steps.

Parameters

[in] num_steps The number of smoothing steps to be performed.

Definition at line 180 of file amavanka.hpp.

References XASSERT.

◆ set_omega()

template<typename Matrix_ , typename Filter_ >

void FEAT::Solver::AmaVanka< Matrix_, Filter_ >::set_omega ( DataType omega )

inline

Sets the damping parameter omega.

Parameters

[in] omega The damping parameter.

Definition at line 192 of file amavanka.hpp.

References XASSERT.

◆ set_skip_singular()

template<typename Matrix_ , typename Filter_ >

void FEAT::Solver::AmaVanka< Matrix_, Filter_ >::set_skip_singular ( bool skip_sing )

inline

Sets whether singular macros are to be skipped.

Parameters

[in] skip_sing Specifies whether singular macros are to be skipped.

Definition at line 204 of file amavanka.hpp.

◆ time_apply()

template<typename Matrix_ , typename Filter_ >

double FEAT::Solver::AmaVanka< Matrix_, Filter_ >::time_apply ( ) const

inline

Returns the total accumulated time for the solver application.

Definition at line 264 of file amavanka.hpp.

References FEAT::StopWatch::elapsed().

◆ time_init_numeric()

template<typename Matrix_ , typename Filter_ >

double FEAT::Solver::AmaVanka< Matrix_, Filter_ >::time_init_numeric ( ) const

inline

Returns the total accumulated time for numeric initialization.

Definition at line 256 of file amavanka.hpp.

References FEAT::StopWatch::elapsed().

◆ time_init_symbolic()

template<typename Matrix_ , typename Filter_ >

double FEAT::Solver::AmaVanka< Matrix_, Filter_ >::time_init_symbolic ( ) const

inline

Returns the total accumulated time for symbolic initialization.

Definition at line 248 of file amavanka.hpp.

References FEAT::StopWatch::elapsed().

Member Data Documentation

◆ _auto_macros

template<typename Matrix_ , typename Filter_ >

bool FEAT::Solver::AmaVanka< Matrix_, Filter_ >::_auto_macros

protected

deduct macro dofs automatically?

Definition at line 88 of file amavanka.hpp.

Referenced by FEAT::Solver::AmaVanka< Matrix_, Filter_ >::clear_macro_dofs(), and FEAT::Solver::AmaVanka< Matrix_, Filter_ >::push_macro_dofs().

◆ _dof_macros

template<typename Matrix_ , typename Filter_ >

std::vector<Adjacency::Graph> FEAT::Solver::AmaVanka< Matrix_, Filter_ >::_dof_macros

protected

Definition at line 92 of file amavanka.hpp.

◆ _filter

template<typename Matrix_ , typename Filter_ >

const Filter_& FEAT::Solver::AmaVanka< Matrix_, Filter_ >::_filter

protected

the system filter

Definition at line 84 of file amavanka.hpp.

◆ _macro_dofs

template<typename Matrix_ , typename Filter_ >

std::vector<Adjacency::Graph> FEAT::Solver::AmaVanka< Matrix_, Filter_ >::_macro_dofs

protected

the DOF-macro graphs

Definition at line 92 of file amavanka.hpp.

Referenced by FEAT::Solver::VoxelAmaVanka< Matrix_, Filter_, pol_threading_, macro_type_ >::_alloc_device(), FEAT::Solver::VoxelAmaVanka< Matrix_, Filter_, pol_threading_, macro_type_ >::_alloc_max_degrees(), FEAT::Solver::VoxelAmaVanka< Matrix_, Filter_, pol_threading_, macro_type_ >::_init_numeric_generic(), FEAT::Solver::AmaVanka< Matrix_, Filter_ >::bytes(), FEAT::Solver::VoxelAmaVanka< Matrix_, Filter_, pol_threading_, macro_type_ >::init_numeric(), FEAT::Solver::AmaVanka< Matrix_, Filter_ >::init_symbolic(), and FEAT::Solver::AmaVanka< Matrix_, Filter_ >::push_macro_dofs().

◆ _macro_mask

template<typename Matrix_ , typename Filter_ >

std::vector<int> FEAT::Solver::AmaVanka< Matrix_, Filter_ >::_macro_mask

protected

the macro mask

Definition at line 94 of file amavanka.hpp.

Referenced by FEAT::Solver::VoxelAmaVanka< Matrix_, Filter_, pol_threading_, macro_type_ >::_alloc_device(), and FEAT::Solver::VoxelAmaVanka< Matrix_, Filter_, pol_threading_, macro_type_ >::_init_numeric_generic().

◆ _matrix

template<typename Matrix_ , typename Filter_ >

const Matrix_& FEAT::Solver::AmaVanka< Matrix_, Filter_ >::_matrix

protected

the system matrix

Definition at line 82 of file amavanka.hpp.

Referenced by FEAT::Solver::VoxelAmaVanka< Matrix_, Filter_, pol_threading_, macro_type_ >::init_numeric().

◆ _num_steps

template<typename Matrix_ , typename Filter_ >

Index FEAT::Solver::AmaVanka< Matrix_, Filter_ >::_num_steps

protected

number of steps

Definition at line 96 of file amavanka.hpp.

Referenced by FEAT::Solver::AmaVanka< Matrix_, Filter_ >::apply().

◆ _num_threads

template<typename Matrix_ , typename Filter_ >

int FEAT::Solver::AmaVanka< Matrix_, Filter_ >::_num_threads

protected

number of threads for numeric factorization

Definition at line 110 of file amavanka.hpp.

◆ _omega

template<typename Matrix_ , typename Filter_ >

DataType FEAT::Solver::AmaVanka< Matrix_, Filter_ >::_omega

protected

damping parameter

Definition at line 98 of file amavanka.hpp.

Referenced by FEAT::Solver::VoxelAmaVanka< Matrix_, Filter_, pol_threading_, macro_type_ >::_init_numeric_cuda(), and FEAT::Solver::VoxelAmaVanka< Matrix_, Filter_, pol_threading_, macro_type_ >::_init_numeric_generic().

◆ _skip_singular

template<typename Matrix_ , typename Filter_ >

bool FEAT::Solver::AmaVanka< Matrix_, Filter_ >::_skip_singular

protected

skip singular macros?

Definition at line 90 of file amavanka.hpp.

Referenced by FEAT::Solver::VoxelAmaVanka< Matrix_, Filter_, pol_threading_, macro_type_ >::_alloc_device(), FEAT::Solver::VoxelAmaVanka< Matrix_, Filter_, pol_threading_, macro_type_ >::_init_numeric_cuda(), and FEAT::Solver::VoxelAmaVanka< Matrix_, Filter_, pol_threading_, macro_type_ >::_init_numeric_generic().

◆ _vanka

template<typename Matrix_ , typename Filter_ >

VankaMatrixType FEAT::Solver::AmaVanka< Matrix_, Filter_ >::_vanka

protected

the Vanka preconditioner matrix

Definition at line 86 of file amavanka.hpp.

Referenced by FEAT::Solver::AmaVanka< Matrix_, Filter_ >::bytes(), FEAT::Solver::AmaVanka< Matrix_, Filter_ >::data_size(), and FEAT::Solver::VoxelAmaVanka< Matrix_, Filter_, pol_threading_, macro_type_ >::init_numeric().

◆ _vec_c

template<typename Matrix_ , typename Filter_ >

VectorType FEAT::Solver::AmaVanka< Matrix_, Filter_ >::_vec_c

protected

temporary vectors

Definition at line 100 of file amavanka.hpp.

Referenced by FEAT::Solver::AmaVanka< Matrix_, Filter_ >::bytes().

◆ _vec_d

template<typename Matrix_ , typename Filter_ >

VectorType FEAT::Solver::AmaVanka< Matrix_, Filter_ >::_vec_d

protected

Definition at line 100 of file amavanka.hpp.

◆ watch_apply

template<typename Matrix_ , typename Filter_ >

StopWatch FEAT::Solver::AmaVanka< Matrix_, Filter_ >::watch_apply

protected

Definition at line 107 of file amavanka.hpp.

◆ watch_init_numeric

template<typename Matrix_ , typename Filter_ >

StopWatch FEAT::Solver::AmaVanka< Matrix_, Filter_ >::watch_init_numeric

protected

Definition at line 105 of file amavanka.hpp.

◆ watch_init_symbolic

template<typename Matrix_ , typename Filter_ >

StopWatch FEAT::Solver::AmaVanka< Matrix_, Filter_ >::watch_init_symbolic

protected

Definition at line 103 of file amavanka.hpp.

The documentation for this class was generated from the following file:

kernel/solver/amavanka.hpp

Public Types

Public Member Functions

Protected Types

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ BaseClass

◆ DataType

◆ IndexType

◆ VankaMatrixType

◆ VectorType

Constructor & Destructor Documentation

◆ AmaVanka()

Member Function Documentation

◆ apply()

◆ bytes()

◆ clear_macro_dofs()

◆ compare()

◆ data_size()

◆ done()

◆ done_numeric()

◆ done_symbolic()

◆ init()

◆ init_numeric()

◆ init_symbolic()

◆ name()

◆ push_macro_dofs()

◆ reset_timings()

◆ set_num_steps()

◆ set_omega()

◆ set_skip_singular()

◆ time_apply()

◆ time_init_numeric()

◆ time_init_symbolic()

Member Data Documentation

◆ _auto_macros

◆ _dof_macros

◆ _filter

◆ _macro_dofs

◆ _macro_mask

◆ _matrix

◆ _num_steps

◆ _num_threads

◆ _omega

◆ _skip_singular

◆ _vanka

◆ _vec_c

◆ _vec_d

◆ watch_apply

◆ watch_init_numeric

◆ watch_init_symbolic
