Front-end wrapper class for (parallel) third-party direct sparse solvers. More...

#include <direct_sparse_solver.hpp>

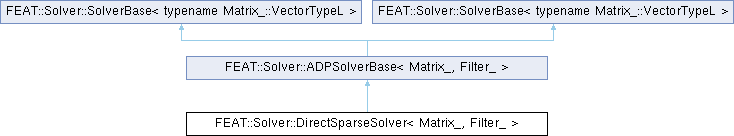

Inheritance diagram for FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >:

Public Types
typedef ADPSolverBase< Matrix_, Filter_ >	BaseClass
	our base class More...

typedef MatrixType::DataType	DataType
	our internal data type More...

typedef BaseClass::FilterType	FilterType
	our (global or local) system filter type More...

typedef MatrixType::IndexType	IndexType
	our internal index type More...

typedef BaseClass::MatrixType	MatrixType
	our (global or local) system matrix type More...

typedef BaseClass::VectorType	VectorType
	our (global or local) system vector type More...

Public Member Functions
	DirectSparseSolver (const MatrixType &matrix, const FilterType &filter)
	Creates a new DirectSparseSolver object for the given system. More...

virtual	~DirectSparseSolver ()
	virtual destructor More...

virtual Status	apply (Vector_ &vec_cor, const Vector_ &vec_def)=0
	Solver application method. More...

virtual Status	apply (VectorType &vec_cor, const VectorType &vec_def) override
	Solves a linear system with the factorized system matrix. More...

void	clear_allowed_backends ()
	Clears the deque of allowed backends. More...

virtual void	done ()
	Finalization method. More...

virtual void	done_numeric () override
	Releases the numeric initialization data of the solver. More...

virtual void	done_symbolic () override
	Releases the symbolic factorization data and frees the backend. More...

const std::deque< DSSBackend >	get_allowed_backends () const
	Returns a reference to the deque of allowed backends. More...

DSSBackend	get_selected_backend () const
	Returns the selected backend. More...

virtual void	init ()
	Initialization method. More...

virtual void	init_numeric () override
	Performs the numeric initialization of the solver. More...

virtual void	init_symbolic () override
	Performs the symbolic initialization of the solver. More...

virtual String	name () const override
	Returns the name of the solver. More...

void	push_allowed_backend (const String &backend)
	Pushes a combination of allowed backends into the backend queue. More...

void	push_allowed_backend (DSSBackend backend)
	Pushes a combination of allowed backends into the backend queue. More...

void	push_allowed_backend_list (const std::deque< String > &backends)
	Pushes a deque of allowed backends into the backend queue. More...

void	push_allowed_backend_list (const String &backends)
	Pushes a list of allowed backends into the backend queue. More...

Static Public Member Functions
static bool	is_available (const MatrixType &matrix, const FilterType &filter)
	Checks whether a suitable backend for the given matrix and filter. More...

Static Public Attributes
static constexpr bool	have_backend_cudss = DSS::have_cudss
	specifies whether the cuDSS solver backend is available More...

static constexpr bool	have_backend_global = DSS::have_backend_global
	specifies whether at least one backend for global systems is available More...

static constexpr bool	have_backend_local = DSS::have_backend_local
	specifies whether at least one backend for local systems is available More...

static constexpr bool	have_backend_mkldss = DSS::have_mkldss
	specifies whether the MKL-DSS solver backend is available More...

static constexpr bool	have_backend_mumps = DSS::have_mumps
	specifies whether the MUMPS solver backend is available More...

static constexpr bool	have_backend_superlu = DSS::have_superlu
	specifies whether the SuperLU solver backend is available More...

static constexpr bool	have_backend_umfpack = DSS::have_umfpack
	specifies whether the UMFPACK solver backend is available More...

Protected Member Functions
template<typename DTV_ >
void	_download_vector (LocalVectorType &vector, const DTV_ *val)
	Downloads the ADP vector values from the given array. More...

template<typename DTV_ >
void	_download_vector (VectorType &vector, const DTV_ *val)
	Downloads the ADP vector values from the given array. More...

template<typename DTV_ , typename RPT_ , typename CIT_ >
void	_filter_mat (DTV_ , const RPT_ , const CIT_ *, const Global::MeanFilter< DataType, IndexType > &filter)
	auxiliary function: filters the local ADP matrix More...

template<typename DTV_ , typename RPT_ , typename CIT_ >
void	_filter_mat (DTV_ , const RPT_ , const CIT_ *, const LAFEM::MeanFilter< DataType, IndexType > &filter)
	auxiliary function: filters the local ADP matrix More...

template<typename DTV_ , typename RPT_ , typename CIT_ >
void	_filter_mat (DTV_ , const RPT_ , const CIT_ *, const LAFEM::NoneFilter< DataType, IndexType > &)
	auxiliary function: filters the local ADP matrix More...

template<typename DTV_ , typename RPT_ , typename CIT_ , typename First_ >
void	_filter_mat (DTV_ val, const RPT_ row_ptr, const CIT_ *col_idx, const LAFEM::FilterChain< First_ > &filter)
	auxiliary function: filters the local ADP matrix More...

template<typename DTV_ , typename RPT_ , typename CIT_ , typename First_ , typename... Rest_>
void	_filter_mat (DTV_ val, const RPT_ row_ptr, const CIT_ *col_idx, const LAFEM::FilterChain< First_, Rest_... > &filter)
	auxiliary function: filters the local ADP matrix More...

template<typename DTV_ , typename RPT_ , typename CIT_ , typename SubFilter_ >
void	_filter_mat (DTV_ val, const RPT_ row_ptr, const CIT_ *col_idx, const LAFEM::FilterSequence< SubFilter_ > &filter)
	auxiliary function: filters the local ADP matrix More...

template<typename DTV_ , typename RPT_ , typename CIT_ >
void	_filter_mat (DTV_ val, const RPT_ row_ptr, const CIT_ *col_idx, const LAFEM::UnitFilter< DataType, IndexType > &filter)
	auxiliary function: filters the local ADP matrix More...

String	_get_adp_block_information () const

String	_get_adp_block_information () const

Index	_get_adp_matrix_num_cols () const

Index	_get_adp_matrix_num_cols () const

Index	_get_adp_matrix_num_nzes () const

Index	_get_adp_matrix_num_nzes () const

Index	_get_adp_matrix_num_rows () const

Index	_get_adp_matrix_num_rows () const

Index	_get_adp_vector_size () const

Index	_get_adp_vector_size () const

const Dist::Comm *	_get_comm () const

const Dist::Comm *	_get_comm () const

Index	_get_global_dof_offset () const

Index	_get_global_dof_offset () const

Index	_get_num_global_dofs () const

Index	_get_num_global_dofs () const

Index	_get_num_global_nonzeros () const

Index	_get_num_global_nonzeros () const

Index	_get_num_owned_dofs () const

Index	_get_num_owned_dofs () const

template<typename DTV_ , typename RPT_ , typename CIT_ >
void	_upload_numeric (DTV_ val, const RPT_ row_ptr, const CIT_ *col_idx)
	Uploads the (filtered) ADP matrix values to the given array. More...

template<typename DTV_ , typename RPT_ , typename CIT_ >
void	_upload_numeric (DTV_ val, const RPT_ row_ptr, const CIT_ *col_idx)
	Uploads the (filtered) ADP matrix values to the given array. More...

template<typename RPT_ , typename CIT_ >
void	_upload_symbolic (RPT_ row_ptr, CIT_ col_idx)
	Uploads the ADP matrix structure to the given arrays. More...

template<typename RPT_ , typename CIT_ >
void	_upload_symbolic (RPT_ row_ptr, CIT_ col_idx)
	Uploads the ADP matrix structure to the given arrays. More...

template<typename DTV_ >
void	_upload_vector (DTV_ *val, const LocalVectorType &vector)
	Uploads the ADP vector values to the given array. More...

template<typename DTV_ >
void	_upload_vector (DTV_ *val, const VectorType &vector)
	Uploads the ADP vector values to the given array. More...

Protected Attributes
Dist::Comm	_comm_self
	self-communicator object More...

const FilterType &	_system_filter
	the system filter More...

const MatrixType &	_system_matrix
	the system matrix More...

Private Member Functions
bool	_create_core_cudss ()
	Tries to create a cuDSS backend core and returns true, if it succeeded. More...

bool	_create_core_mkldss ()
	Tries to create a MKL-DSS backend core and returns true, if it succeeded. More...

bool	_create_core_mumps ()
	Tries to create a MUMPS backend core and returns true, if it succeeded. More...

bool	_create_core_superlu ()
	Tries to create a SuperLU backend core and returns true, if it succeeded. More...

bool	_create_core_umfpack ()
	Tries to create an UMFPACK backend core and returns true, if it succeeded. More...

Private Attributes
std::deque< DSSBackend >	_allowed_backends
	backends that the user allowed us to use More...

void *	_core_cudss
	Nvidia cuDSS core. More...

void *	_core_mkldss
	Intel MKLDSS core. More...

void *	_core_mumps
	MUMPS core. More...

void *	_core_superlu
	SuperLU core. More...

void *	_core_umfpack
	UMFPACK core. More...

PreferredBackend	_preferred_backend
	preferred backend of runtime at time of object creation More...

Detailed Description

template<typename Matrix_, typename Filter_>
class FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >

Front-end wrapper class for (parallel) third-party direct sparse solvers.

This class acts as a unified front-end that enables the use of various direct sparse solvers implemented in third-party libraries. This class derives from the ADPSolverBase class and can therefore be applied to any type of system that is supported by the ADPSolverBase class.

In particular, this class currently offers the following backends:

cuDSS: A MPI-parallel direct solver for CUDA, which utilizes the GPU to solve the system. Obviously requires CUDA and the cuDSS library and can only utilize a single GPU per MPI process.
MKL-DSS: A MPI-parallel direct solver, which is part of the Intel oneAPI MKL libraries, which is typically the best choice if the solver is applied on multiple processes.
MUMPS: A MPI-parallel direct solver written in Fortran.
SuperLU: A MPI-parallel direct solver implemented in the SuperLU_Dist library. This solver is usually slower that UMFPACK in the single-process case and slower that MKL-DSS in the multi-process case, so it serves as a fallback if the other ones are not available or not suitable.
UMFPACK: A sequential direct solver, which is typically the best choice if the solver is applied only on a single MPI process or in sequential builds.

Attention: If you intend to use the cuDSS library in combination with MPI in "multi-node-multi-gpu" mode, then you need to ensure that the CUDSS_COMM_LIB environment variable is set to the absolute path of cuDSS's libcudss_commlayer_openmpi.so library, because the code will otherwise crash with obscure illegal memory access errors when trying to run the solver with more than 1 MPI process! See https://docs.nvidia.com/cuda/cudss/advanced_features.html#multi-gpu-multi-node-mgmn-mode for more details.

Note: Technically, the MKL-DSS backend includes two different backends, namely a backend for the Intel oneAPI MKL "Direct Sparse Solver" (aka "DSS") solver for non-MPI builds, as well as for the Intel oneAPI MKL "Parallel Direct Sparse Solver for Clusters" for MPI builds. The reason why both backends are included in this wrapper class is that the latter parallel solver backend cannot be used in non-MPI builds and trying to do so would result in crashes due to invalid MPI calls from within the library, therefore we also had to include the "DSS" backend for non-MPI builds. To avoid confusion, this wrapper always denotes the MKL backend as "MKL-DSS" and does not distinguish between the two MKL backends to avoid user confusion.

Backend Selection Process:
The actual backend selection process is performed during the execution of the init_symbolic() method and the selection process depends on three main factors:

which solver backend third-party libraries are available
whether the user has specified (a deque of) allowed backends and, if so, what the user has actually specified
the value of Backend::get_preferred_backend() at the time of the construction of this object, i.e. at the time of its constructor call

Independently of all other factors, a backend can only be selected if its corresponding third-party library is available for obvious reasons. Then, there are two main scenarios:

Scenario A: If the user specified a list of allowed backend (combinations) by calling one of the push_allowed_backend_list() or push_allowed_backends() functions, then the algorithm will start with the first allowed backend (combination) from the list and it will check if any of the allowed backends in the combination is available and, if so, it will select that backend. If the backend combination contains more than a single allowed backend, the algorithm will check them in the following order:

cuDSS
MKL-DSS
MUMPS
UMFPACK
SuperLU

If none of the backends in a given backend combination is available, the algorithm continues with the next combination in the list until it has either found a suitable backend or until it reaches the end of the list, in which case the init_symbolic() function throws an instance of the DSSBackendNotFoundException exception to indicate that it failed to find a suitable backend that meets the users list of allowed backends.

As a simple example, assume the user specified $"mkldss|superlu cudss umfpack" as a list of allowed backend combinations, then the algorithm will first try to create the MKL-DSS or the SuperLU backends and, if none of the two are available, it will then try to create the cuDSS backend and, if that isn't available either, it will finally try to create the UMFPACK backend.

Scenario B: If the user did not specify any allowed backend combinations, then the algorithm will check which PreferredBackend was selected at the time that the DirectSparseSolver object was constructed and it will perform the following steps in the following order

If the preferred backend was PreferredBackend::cuda, then the algorithm will try to create a cuDSS backend. If the cuDSS backend is not available – which could happen if FEAT was compiled with CUDA enabled but without the additional cuDSS third party library – a DSSBackendNotFoundException is thrown.
If the preferred backend was PreferredBackend::mkl, then the algorithm will try to create a MKL-DSS backend. If the MKL-DSS backend is not available – which should never happen – a DSSBackendNotFoundException is thrown.
If the preferred backend is any other than the ones listed above, then the algorithm will try to select a suitable backend by trying out all available backends in the following order:
1. cuDSS
2. MKL-DSS
3. MUMPS
4. UMFPACK
5. SuperLU
If none of the above backends are available, it throws a DSSBackendNotFoundException.

Note: If you want to skip the check of the preferred backend and you just want the algorithm to select any suitable backend, then you can simply push DSSBackend::all as the allowed backend.

Todo:: check for unsupported filters in is_available()

Author: Peter Zajac

Definition at line 448 of file direct_sparse_solver.hpp.

Member Typedef Documentation

◆ BaseClass

template<typename Matrix_ , typename Filter_ >

typedef ADPSolverBase<Matrix_, Filter_> FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::BaseClass

our base class

Definition at line 453 of file direct_sparse_solver.hpp.

◆ DataType

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

typedef MatrixType::DataType FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::DataType

inherited

our internal data type

Definition at line 783 of file adp_solver_base.hpp.

◆ FilterType

template<typename Matrix_ , typename Filter_ >

typedef BaseClass::FilterType FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::FilterType

our (global or local) system filter type

Definition at line 459 of file direct_sparse_solver.hpp.

◆ IndexType

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

typedef MatrixType::IndexType FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::IndexType

inherited

our internal index type

Definition at line 785 of file adp_solver_base.hpp.

◆ MatrixType

template<typename Matrix_ , typename Filter_ >

typedef BaseClass::MatrixType FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::MatrixType

our (global or local) system matrix type

Definition at line 455 of file direct_sparse_solver.hpp.

◆ VectorType

template<typename Matrix_ , typename Filter_ >

typedef BaseClass::VectorType FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::VectorType

our (global or local) system vector type

Definition at line 457 of file direct_sparse_solver.hpp.

Constructor & Destructor Documentation

◆ DirectSparseSolver()

template<typename Matrix_ , typename Filter_ >

FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::DirectSparseSolver	(	const MatrixType &	matrix,
		const FilterType &	filter
	)

inlineexplicit

Creates a new DirectSparseSolver object for the given system.

Parameters

[in]	matrix	A resident reference to the system matrix.
[in]	filter	A resident reference to the system filter.

Note: This constructor queries the result of Backend::get_preferred_backend(), which is used during the symbolic initialization phase to determine which of the available solver backends to choose if the user did not manually specify a set of allowed backends.

Definition at line 506 of file direct_sparse_solver.hpp.

◆ ~DirectSparseSolver()

template<typename Matrix_ , typename Filter_ >

virtual FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::~DirectSparseSolver ( )

inlinevirtual

virtual destructor

Definition at line 519 of file direct_sparse_solver.hpp.

Member Function Documentation

◆ _create_core_cudss()

template<typename Matrix_ , typename Filter_ >

bool FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_create_core_cudss ( )

inlineprivate

Tries to create a cuDSS backend core and returns true, if it succeeded.

Definition at line 1063 of file direct_sparse_solver.hpp.

References FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_adp_matrix_num_nzes(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_comm(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_global_dof_offset(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_num_global_dofs(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_num_global_nonzeros(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_num_owned_dofs(), and FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_upload_symbolic().

Referenced by FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::init_symbolic().

◆ _create_core_mkldss()

template<typename Matrix_ , typename Filter_ >

bool FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_create_core_mkldss ( )

inlineprivate

Tries to create a MKL-DSS backend core and returns true, if it succeeded.

Definition at line 1090 of file direct_sparse_solver.hpp.

References FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_adp_matrix_num_nzes(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_comm(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_global_dof_offset(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_num_global_dofs(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_num_global_nonzeros(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_num_owned_dofs(), and FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_upload_symbolic().

Referenced by FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::init_symbolic().

◆ _create_core_mumps()

template<typename Matrix_ , typename Filter_ >

bool FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_create_core_mumps ( )

inlineprivate

Tries to create a MUMPS backend core and returns true, if it succeeded.

Definition at line 1117 of file direct_sparse_solver.hpp.

References FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_adp_matrix_num_nzes(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_comm(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_global_dof_offset(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_num_global_dofs(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_num_global_nonzeros(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_num_owned_dofs(), and FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_upload_symbolic().

Referenced by FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::init_symbolic().

◆ _create_core_superlu()

template<typename Matrix_ , typename Filter_ >

bool FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_create_core_superlu ( )

inlineprivate

Tries to create a SuperLU backend core and returns true, if it succeeded.

Definition at line 1144 of file direct_sparse_solver.hpp.

References FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_adp_matrix_num_nzes(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_comm(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_global_dof_offset(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_num_global_dofs(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_num_global_nonzeros(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_num_owned_dofs(), and FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_upload_symbolic().

Referenced by FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::init_symbolic().

◆ _create_core_umfpack()

template<typename Matrix_ , typename Filter_ >

bool FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_create_core_umfpack ( )

inlineprivate

Tries to create an UMFPACK backend core and returns true, if it succeeded.

Definition at line 1171 of file direct_sparse_solver.hpp.

References FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_adp_matrix_num_nzes(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_comm(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_global_dof_offset(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_num_global_dofs(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_num_global_nonzeros(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_num_owned_dofs(), and FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_upload_symbolic().

Referenced by FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::init_symbolic().

◆ _download_vector() [1/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

template<typename DTV_ >

void FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_download_vector	(	LocalVectorType &	vector,
		const DTV_ *	val
	)

protectedinherited

Downloads the ADP vector values from the given array.

Parameters

[in,out]	vector	A transient reference to the local vector that receives the downloaded ADP value array. It is assumed to be allocated to the correct size, but its contents on entry are ignored.
[in]	val	A transient pointer to an array of length _get_adp_vector_size() that contains the ADP values that are to be downloaded to the output vector given by `vector`.

Referenced by FEAT::Solver::TpetraSolverBase< Matrix_, Filter_, SolverBase_ >::_download_cor(), FEAT::Solver::HypreSolverBase< Matrix_, Filter_, SolverBase_ >::_download_cor(), and FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::apply().

◆ _download_vector() [2/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

template<typename DTV_ >

void FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_download_vector	(	VectorType &	vector,
		const DTV_ *	val
	)

inlineprotectedinherited

Downloads the ADP vector values from the given array.

Parameters

[in,out]	vector	A transient reference to the local vector that receives the downloaded ADP value array. It is assumed to be allocated to the correct size, but its contents on entry are ignored.
[in]	val	A transient pointer to an array of length _get_adp_vector_size() that contains the ADP values that are to be downloaded to the output vector given by `vector`.

Definition at line 956 of file adp_solver_base.hpp.

◆ _filter_mat() [1/7]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

template<typename DTV_ , typename RPT_ , typename CIT_ >

void FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_filter_mat	(	DTV_ *	,
		const RPT_ *	,
		const CIT_ *	,
		const Global::MeanFilter< DataType, IndexType > &	filter
	)

inlineprotectedinherited

auxiliary function: filters the local ADP matrix

Definition at line 994 of file adp_solver_base.hpp.

References XASSERTM.

◆ _filter_mat() [2/7]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

template<typename DTV_ , typename RPT_ , typename CIT_ >

void FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_filter_mat	(	DTV_ *	,
		const RPT_ *	,
		const CIT_ *	,
		const LAFEM::MeanFilter< DataType, IndexType > &	filter
	)

inlineprotectedinherited

auxiliary function: filters the local ADP matrix

Definition at line 986 of file adp_solver_base.hpp.

References XASSERTM.

◆ _filter_mat() [3/7]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

template<typename DTV_ , typename RPT_ , typename CIT_ >

void FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_filter_mat	(	DTV_ *	,
		const RPT_ *	,
		const CIT_ *	,
		const LAFEM::NoneFilter< DataType, IndexType > &
	)

inlineprotectedinherited

auxiliary function: filters the local ADP matrix

Definition at line 963 of file adp_solver_base.hpp.

Referenced by FEAT::Solver::ADPSolverBase< Global::PMDCDSCMatrix< MatrixB_, MatrixD_ >, GlobalFilter_, SolverBase_ >::_filter_mat(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_filter_mat(), FEAT::Solver::ADPSolverBase< Global::PMDCDSCMatrix< MatrixB_, MatrixD_ >, GlobalFilter_, SolverBase_ >::_upload_numeric(), and FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_upload_numeric().

◆ _filter_mat() [4/7]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

template<typename DTV_ , typename RPT_ , typename CIT_ , typename First_ >

void FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_filter_mat	(	DTV_ *	val,
		const RPT_ *	row_ptr,
		const CIT_ *	col_idx,
		const LAFEM::FilterChain< First_ > &	filter
	)

inlineprotectedinherited

auxiliary function: filters the local ADP matrix

Definition at line 1020 of file adp_solver_base.hpp.

References FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_filter_mat().

◆ _filter_mat() [5/7]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

template<typename DTV_ , typename RPT_ , typename CIT_ , typename First_ , typename... Rest_>

void FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_filter_mat	(	DTV_ *	val,
		const RPT_ *	row_ptr,
		const CIT_ *	col_idx,
		const LAFEM::FilterChain< First_, Rest_... > &	filter
	)

inlineprotectedinherited

auxiliary function: filters the local ADP matrix

Definition at line 1011 of file adp_solver_base.hpp.

References FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_filter_mat().

◆ _filter_mat() [6/7]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

template<typename DTV_ , typename RPT_ , typename CIT_ , typename SubFilter_ >

void FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_filter_mat	(	DTV_ *	val,
		const RPT_ *	row_ptr,
		const CIT_ *	col_idx,
		const LAFEM::FilterSequence< SubFilter_ > &	filter
	)

inlineprotectedinherited

auxiliary function: filters the local ADP matrix

Definition at line 1002 of file adp_solver_base.hpp.

References FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_filter_mat().

◆ _filter_mat() [7/7]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

template<typename DTV_ , typename RPT_ , typename CIT_ >

void FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_filter_mat	(	DTV_ *	val,
		const RPT_ *	row_ptr,
		const CIT_ *	col_idx,
		const LAFEM::UnitFilter< DataType, IndexType > &	filter
	)

inlineprotectedinherited

auxiliary function: filters the local ADP matrix

Definition at line 971 of file adp_solver_base.hpp.

◆ _get_adp_block_information() [1/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

String FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_adp_block_information ( ) const

protectedinherited

Returns: The block information of the algebraic dof partitioning as an XML string.

◆ _get_adp_block_information() [2/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

String FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_adp_block_information ( ) const

inlineprotectedinherited

Returns: The block information of the algebraic dof partitioning as an XML string.

Definition at line 873 of file adp_solver_base.hpp.

References XABORTM.

◆ _get_adp_matrix_num_cols() [1/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

Index FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_adp_matrix_num_cols ( ) const

protectedinherited

Returns: The number of columns of the local ADP matrix; equal to _get_num_global_dofs()

◆ _get_adp_matrix_num_cols() [2/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

Index FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_adp_matrix_num_cols ( ) const

inlineprotectedinherited

Returns: The number of columns of the local ADP matrix; equal to _get_num_global_dofs()

Definition at line 837 of file adp_solver_base.hpp.

References FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_system_matrix.

◆ _get_adp_matrix_num_nzes() [1/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

Index FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_adp_matrix_num_nzes ( ) const

protectedinherited

Returns: The number of nonzero entries of the local ADP matrix

◆ _get_adp_matrix_num_nzes() [2/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

Index FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_adp_matrix_num_nzes ( ) const

inlineprotectedinherited

Returns: The number of nonzero entries of the local ADP matrix

Definition at line 843 of file adp_solver_base.hpp.

References FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_system_matrix.

◆ _get_adp_matrix_num_rows() [1/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

Index FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_adp_matrix_num_rows ( ) const

protectedinherited

Returns: The number of rows of the local ADP matrix; equal to _get_num_owned_dofs()

◆ _get_adp_matrix_num_rows() [2/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

Index FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_adp_matrix_num_rows ( ) const

inlineprotectedinherited

Returns: The number of rows of the local ADP matrix; equal to _get_num_owned_dofs()

Definition at line 831 of file adp_solver_base.hpp.

References FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_system_matrix.

◆ _get_adp_vector_size() [1/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

Index FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_adp_vector_size ( ) const

protectedinherited

Returns: The size of the local ADP vector; equal to _get_num_owned_dofs()

Referenced by FEAT::Solver::ADPSolverBase< Global::PMDCDSCMatrix< MatrixB_, MatrixD_ >, GlobalFilter_, SolverBase_ >::_download_vector(), and FEAT::Solver::ADPSolverBase< Global::PMDCDSCMatrix< MatrixB_, MatrixD_ >, GlobalFilter_, SolverBase_ >::_upload_vector().

◆ _get_adp_vector_size() [2/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

Index FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_adp_vector_size ( ) const

inlineprotectedinherited

Returns: The size of the local ADP vector; equal to _get_num_owned_dofs()

Definition at line 825 of file adp_solver_base.hpp.

References FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_system_matrix.

◆ _get_comm() [1/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

const Dist::Comm * FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_comm ( ) const

protectedinherited

Returns: A pointer to the underlying communicator

◆ _get_comm() [2/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

const Dist::Comm * FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_comm ( ) const

inlineprotectedinherited

Returns: A pointer to the underlying (self) communicator

Definition at line 819 of file adp_solver_base.hpp.

References FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_comm_self.

◆ _get_global_dof_offset() [1/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

Index FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_global_dof_offset ( ) const

protectedinherited

Returns: The index of the first global DOF owned by this process

◆ _get_global_dof_offset() [2/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

Index FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_global_dof_offset ( ) const

inlineprotectedinherited

Returns: The index of the first global DOF owned by this process

Definition at line 867 of file adp_solver_base.hpp.

◆ _get_num_global_dofs() [1/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

Index FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_num_global_dofs ( ) const

protectedinherited

Returns: The total number of global DOFs on all processes

Referenced by FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_create_core_cudss(), FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_create_core_mkldss(), FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_create_core_mumps(), FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_create_core_superlu(), FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_create_core_umfpack(), FEAT::Solver::ADPSolverBase< Global::PMDCDSCMatrix< MatrixB_, MatrixD_ >, GlobalFilter_, SolverBase_ >::_get_adp_matrix_num_cols(), FEAT::Solver::SuperLU< Matrix_, Filter_ >::init_numeric(), FEAT::Solver::FROSchPreconditioner< Matrix_, Filter_ >::init_symbolic(), FEAT::Solver::StokesFROSchPreconditioner< Matrix_, Filter_ >::init_symbolic(), and FEAT::Solver::SuperLU< Matrix_, Filter_ >::init_symbolic().

◆ _get_num_global_dofs() [2/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

Index FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_num_global_dofs ( ) const

inlineprotectedinherited

Returns: The total number of global DOFs on all processes

Definition at line 855 of file adp_solver_base.hpp.

References FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_system_matrix.

◆ _get_num_global_nonzeros() [1/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

Index FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_num_global_nonzeros ( ) const

protectedinherited

Returns: The total number of nonzero entries of the global ADP matrix

Referenced by FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_create_core_cudss(), FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_create_core_mkldss(), FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_create_core_mumps(), FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_create_core_superlu(), and FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_create_core_umfpack().

◆ _get_num_global_nonzeros() [2/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

Index FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_num_global_nonzeros ( ) const

inlineprotectedinherited

Returns: The total number of nonzero entries of the global ADP matrix

Definition at line 849 of file adp_solver_base.hpp.

References FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_system_matrix.

◆ _get_num_owned_dofs() [1/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

Index FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_num_owned_dofs ( ) const

protectedinherited

Returns: The number of global DOFs owned by this process

◆ _get_num_owned_dofs() [2/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

Index FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_num_owned_dofs ( ) const

inlineprotectedinherited

Returns: The number of global DOFs owned by this process

Definition at line 861 of file adp_solver_base.hpp.

References FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_system_matrix.

◆ _upload_numeric() [1/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

template<typename DTV_ , typename RPT_ , typename CIT_ >

void FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_upload_numeric	(	DTV_ *	val,
		const RPT_ *	row_ptr,
		const CIT_ *	col_idx
	)

protectedinherited

Uploads the (filtered) ADP matrix values to the given array.

Parameters

[out]	val	A transient pointer to an array of length _get_adp_matrix_num_nzes() that receives the filtered matrix values of the local ADP matrix.
[in]	row_ptr	A transient pointer to the row-pointer array of the ADP matrix as returned by the _upload_symbolic() function.
[in]	col_idx	A transient pointer to the column-index array of the ADP matrix as returned by the _upload_symbolic() function.

Referenced by FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::init_numeric(), FEAT::Solver::TpetraSolverBase< Matrix_, Filter_, SolverBase_ >::init_numeric(), FEAT::Solver::HypreSolverBase< Matrix_, Filter_, SolverBase_ >::init_numeric(), and FEAT::Solver::SuperLU< Matrix_, Filter_ >::init_numeric().

◆ _upload_numeric() [2/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

template<typename DTV_ , typename RPT_ , typename CIT_ >

void FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_upload_numeric	(	DTV_ *	val,
		const RPT_ *	row_ptr,
		const CIT_ *	col_idx
	)

inlineprotectedinherited

Uploads the (filtered) ADP matrix values to the given array.

Parameters

[out]	val	A transient pointer to an array of length _get_adp_matrix_num_nzes() that receives the filtered matrix values of the local ADP matrix.
[in]	row_ptr	A transient pointer to the row-pointer array of the ADP matrix as returned by the _upload_symbolic() function.
[in]	col_idx	A transient pointer to the column-index array of the ADP matrix as returned by the _upload_symbolic() function.

Definition at line 917 of file adp_solver_base.hpp.

References FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_filter_mat(), and FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_system_matrix.

◆ _upload_symbolic() [1/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

template<typename RPT_ , typename CIT_ >

void FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_upload_symbolic	(	RPT_ *	row_ptr,
		CIT_ *	col_idx
	)

protectedinherited

Uploads the ADP matrix structure to the given arrays.

Parameters

[out]	row_ptr	A transient pointer to an array of length _get_adp_matrix_num_rows()+1 that receives the the row-pointer array of the local ADP matrix.
[out]	col_idx	A transient pointer to an array of length _get_adp_matrix_num_nzes() that receives the column index array of the local ADP matrix.

◆ _upload_symbolic() [2/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

template<typename RPT_ , typename CIT_ >

void FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_upload_symbolic	(	RPT_ *	row_ptr,
		CIT_ *	col_idx
	)

inlineprotectedinherited

Uploads the ADP matrix structure to the given arrays.

Parameters

[out]	row_ptr	A transient pointer to an array of length _get_adp_matrix_num_rows()+1 that receives the the row-pointer array of the ADP matrix.
[out]	col_idx	A transient pointer to an array of length _get_adp_matrix_num_nzes() that receives the column index array of the ADP matrix.

Definition at line 891 of file adp_solver_base.hpp.

References FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_system_matrix.

◆ _upload_vector() [1/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

template<typename DTV_ >

void FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_upload_vector	(	DTV_ *	val,
		const LocalVectorType &	vector
	)

protectedinherited

Uploads the ADP vector values to the given array.

Parameters

[out]	val	A transient pointer to an array of length _get_adp_vector_size() that receives the local ADP values of the input vector given by `vector`.
[in]	vector	A transient reference to the local vector that is to be uploaded to the ADP value array.

Referenced by FEAT::Solver::TpetraSolverBase< Matrix_, Filter_, SolverBase_ >::_upload_def(), FEAT::Solver::HypreSolverBase< Matrix_, Filter_, SolverBase_ >::_upload_def(), and FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::apply().

◆ _upload_vector() [2/2]

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

template<typename DTV_ >

void FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_upload_vector	(	DTV_ *	val,
		const VectorType &	vector
	)

inlineprotectedinherited

Uploads the ADP vector values to the given array.

Parameters

[out]	val	A transient pointer to an array of length _get_adp_vector_size() that receives the local ADP values of the input vector given by `vector`.
[in]	vector	A transient reference to the local vector that is to be uploaded to the ADP value array.

Definition at line 939 of file adp_solver_base.hpp.

◆ apply() [1/2]

template<typename Vector_ >

virtual Status FEAT::Solver::SolverBase< Vector_ >::apply	(	Vector_ &	vec_cor,
		const Vector_ &	vec_def
	)

pure virtualinherited

Solver application method.

This method applies the solver represented by this object onto a given defect vector and returns the corresponding correction vector.

Note: Solvers which derive from the IterativeSolver base class also provide a correct() method which corrects an initial solution instead of starting with the null vector.

Parameters

[out]	vec_cor	The vector that shall receive the solution of the linear system. It is assumed to be allocated, but its numerical contents may be undefined upon calling this method.
[in]	vec_def	The vector that represents the right-hand-side of the linear system to be solved.

Attention: vec_cor and vec_def must not refer to the same vector object!

Returns: A Status code that represents the status of the solution step.

Implemented in FEAT::Solver::SchwarzPrecond< Global::Vector< LocalVector_, Mirror_ >, Global::Filter< LocalFilter_, Mirror_ > >, FEAT::Solver::ScalePrecond< Vector_, Filter_ >, FEAT::Solver::DiagonalPrecond< Vector_, Filter_ >, FEAT::Solver::MultiGrid< SystemMatrix_, SystemFilter_, TransferOperator_ >, FEAT::Solver::NLOptPrecond< VectorType_, FilterType_ >, FEAT::Solver::AmaVanka< Matrix_, Filter_ >, FEAT::Solver::ConvertPrecond< VectorOuter_, VectorInner_ >, FEAT::Solver::ConvertPrecond< Global::Vector< LocalVectorOuter_, MirrorOuter_ >, Global::Vector< LocalVectorInner_, MirrorInner_ > >, and FEAT::Solver::BFBT< MatrixA_, MatrixB_, MatrixD_, FilterV_, FilterP_ >.

Referenced by FEAT::Solver::solve().

◆ apply() [2/2]

template<typename Matrix_ , typename Filter_ >

virtual Status FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::apply	(	VectorType &	vec_cor,
		const VectorType &	vec_def
	)

inlineoverridevirtual

Solves a linear system with the factorized system matrix.

Parameters

[in,out]	vec_cor	A reference to the solution vector. The vector must be allocated to the correct length, but its initial contents are ignored.
[in]	vec_def	A reference to the right-hand-side of the linear system.

Definition at line 921 of file direct_sparse_solver.hpp.

References FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_download_vector(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_upload_vector(), FEAT::Solver::aborted, and FEAT::Solver::success.

◆ clear_allowed_backends()

template<typename Matrix_ , typename Filter_ >

void FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::clear_allowed_backends ( )

inline

Clears the deque of allowed backends.

Definition at line 653 of file direct_sparse_solver.hpp.

References FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_allowed_backends.

◆ done()

template<typename Vector_ >

virtual void FEAT::Solver::SolverBase< Vector_ >::done ( )

inlinevirtualinherited

Finalization method.

This function performs both the symbolic and numeric finalization, i.e. it simply performs

this->done_numeric();
this->done_symbolic();

Definition at line 283 of file base.hpp.

References FEAT::Solver::SolverBase< Vector_ >::done_numeric(), and FEAT::Solver::SolverBase< Vector_ >::done_symbolic().

◆ done_numeric()

template<typename Matrix_ , typename Filter_ >

virtual void FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::done_numeric ( )

inlineoverridevirtual

Releases the numeric initialization data of the solver.

Reimplemented from FEAT::Solver::SolverBase< Vector_ >.

Definition at line 894 of file direct_sparse_solver.hpp.

References FEAT::Solver::SolverBase< Vector_ >::done_numeric().

◆ done_symbolic()

template<typename Matrix_ , typename Filter_ >

virtual void FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::done_symbolic ( )

inlineoverridevirtual

Releases the symbolic factorization data and frees the backend.

Reimplemented from FEAT::Solver::SolverBase< Vector_ >.

Definition at line 786 of file direct_sparse_solver.hpp.

References FEAT::Solver::SolverBase< Vector_ >::done_symbolic().

◆ get_allowed_backends()

template<typename Matrix_ , typename Filter_ >

const std::deque< DSSBackend > FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::get_allowed_backends ( ) const

inline

Returns a reference to the deque of allowed backends.

Definition at line 659 of file direct_sparse_solver.hpp.

References FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_allowed_backends.

◆ get_selected_backend()

template<typename Matrix_ , typename Filter_ >

DSSBackend FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::get_selected_backend ( ) const

inline

Returns the selected backend.

Note that the backend is selected during the execution of init_symbolic() and therefore this function only returns the actually selected backend after init_symbolic() was called. This function always returns DSSBackend::none before the call to init_symbolic() and after the call to done_symbolic().

Definition at line 672 of file direct_sparse_solver.hpp.

References FEAT::Solver::cudss, FEAT::Solver::mkldss, FEAT::Solver::mumps, FEAT::Solver::none, FEAT::Solver::superlu, and FEAT::Solver::umfpack.

◆ init()

template<typename Vector_ >

virtual void FEAT::Solver::SolverBase< Vector_ >::init ( )

inlinevirtualinherited

Initialization method.

This function performs both the symbolic and numeric initialization, i.e. it simply performs

this->init_symbolic();
this->init_numeric();

Definition at line 268 of file base.hpp.

References FEAT::Solver::SolverBase< Vector_ >::init_numeric(), and FEAT::Solver::SolverBase< Vector_ >::init_symbolic().

◆ init_numeric()

template<typename Matrix_ , typename Filter_ >

virtual void FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::init_numeric ( )

inlineoverridevirtual

Performs the numeric initialization of the solver.

This function may throw instances of DirectSparseSolver exceptions if anything goes wrong.

Reimplemented from FEAT::Solver::SolverBase< Vector_ >.

Definition at line 831 of file direct_sparse_solver.hpp.

References FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_upload_numeric(), and FEAT::Solver::SolverBase< Vector_ >::init_numeric().

◆ init_symbolic()

template<typename Matrix_ , typename Filter_ >

virtual void FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::init_symbolic ( )

inlineoverridevirtual

Performs the symbolic initialization of the solver.

This function selects the actual backend before starting the symbolic initialization. Please check the documentation of this class for details about how the backend selection process is performed.

This function may throw instances of DirectSparseSolver exceptions if anything goes wrong.

Reimplemented from FEAT::Solver::SolverBase< Vector_ >.

Definition at line 696 of file direct_sparse_solver.hpp.

References FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_allowed_backends, FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_create_core_cudss(), FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_create_core_mkldss(), FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_create_core_mumps(), FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_create_core_superlu(), FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_create_core_umfpack(), FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_comm(), FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_preferred_backend, FEAT::cuda, FEAT::Solver::cudss, FEAT::Solver::SolverBase< Vector_ >::init_symbolic(), FEAT::mkl, FEAT::Solver::mkldss, FEAT::Dist::Comm::size(), FEAT::Solver::superlu, and FEAT::Solver::umfpack.

◆ is_available()

template<typename Matrix_ , typename Filter_ >

static bool FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::is_available	(	const MatrixType &	matrix,
		const FilterType &	filter
	)

inlinestatic

Checks whether a suitable backend for the given matrix and filter.

Parameters

[in]	matrix	A transient reference to the system matrix
[in]	filter	A transient reference to the system filter

Returns: true if at least one direct sparse solver backend is available for this system, otherwise false

Definition at line 552 of file direct_sparse_solver.hpp.

References FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::have_backend_global, FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::have_backend_local, FEAT::Dist::Comm::size(), and XABORTM.

Referenced by FEAT::Solver::have_direct_sparse_solver().

◆ name()

template<typename Matrix_ , typename Filter_ >

virtual String FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::name ( ) const

inlineoverridevirtual

Returns the name of the solver.

Implements FEAT::Solver::SolverBase< Vector_ >.

Definition at line 524 of file direct_sparse_solver.hpp.

References FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_core_cudss, FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_core_mkldss, FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_core_mumps, FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_core_superlu, and FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_core_umfpack.

◆ push_allowed_backend() [1/2]

template<typename Matrix_ , typename Filter_ >

void FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::push_allowed_backend ( const String & backend )

inline

Pushes a combination of allowed backends into the backend queue.

Parameters

[in] backend A combination of backends separated by a vertical line character |

The following strings can be used to select the corresponding backends:

DSSBackend::none: "none"
DSSBackend::all: "all"
DSSBackend::cudss: "cudss"
DSSBackend::mkldss: "mkldss" or "mkl-dss"
DSSBackend::mumps: "mumps"
DSSBackend::superlu: "superlu"
DSSBackend::umfpack: "umfpack"

Definition at line 613 of file direct_sparse_solver.hpp.

References FEAT::Solver::all, FEAT::Solver::cudss, FEAT::Solver::mkldss, FEAT::Solver::mumps, FEAT::Solver::none, FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::push_allowed_backend(), FEAT::String::split_by_charset(), FEAT::Solver::superlu, and FEAT::Solver::umfpack.

Referenced by FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::push_allowed_backend(), and FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::push_allowed_backend_list().

◆ push_allowed_backend() [2/2]

template<typename Matrix_ , typename Filter_ >

void FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::push_allowed_backend ( DSSBackend backend )

inline

Pushes a combination of allowed backends into the backend queue.

Parameters

[in] backend A combination of backends

Definition at line 647 of file direct_sparse_solver.hpp.

References FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_allowed_backends.

◆ push_allowed_backend_list() [1/2]

template<typename Matrix_ , typename Filter_ >

void FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::push_allowed_backend_list ( const std::deque< String > & backends )

inline

Pushes a deque of allowed backends into the backend queue.

Parameters

[in] backends A transient reference to a deque of backend strings to push

Definition at line 592 of file direct_sparse_solver.hpp.

References FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::push_allowed_backend().

◆ push_allowed_backend_list() [2/2]

template<typename Matrix_ , typename Filter_ >

void FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::push_allowed_backend_list ( const String & backends )

inline

Pushes a list of allowed backends into the backend queue.

Parameters

[in] backends A string containing a list of backends combinations separated by whitespaces

Definition at line 580 of file direct_sparse_solver.hpp.

References FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::push_allowed_backend_list(), and FEAT::String::split_by_whitespaces().

Referenced by FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::push_allowed_backend_list().

Member Data Documentation

◆ _allowed_backends

template<typename Matrix_ , typename Filter_ >

std::deque<DSSBackend> FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_allowed_backends

private

backends that the user allowed us to use

Definition at line 478 of file direct_sparse_solver.hpp.

Referenced by FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::clear_allowed_backends(), FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::get_allowed_backends(), FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::init_symbolic(), and FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::push_allowed_backend().

◆ _comm_self

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

Dist::Comm FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_comm_self

protectedinherited

self-communicator object

Many third-party libraries always expect a MPI_Comm object even if we operate only on a single MPI process, therefore this class creates a custom self-communicator that can be passed on to the third-party libraries.

Definition at line 795 of file adp_solver_base.hpp.

Referenced by FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_get_comm().

◆ _core_cudss

template<typename Matrix_ , typename Filter_ >

void* FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_core_cudss

private

Nvidia cuDSS core.

Definition at line 482 of file direct_sparse_solver.hpp.

Referenced by FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::name().

◆ _core_mkldss

template<typename Matrix_ , typename Filter_ >

void* FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_core_mkldss

private

Intel MKLDSS core.

Definition at line 484 of file direct_sparse_solver.hpp.

Referenced by FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::name().

◆ _core_mumps

template<typename Matrix_ , typename Filter_ >

void* FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_core_mumps

private

MUMPS core.

Definition at line 486 of file direct_sparse_solver.hpp.

Referenced by FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::name().

◆ _core_superlu

template<typename Matrix_ , typename Filter_ >

void* FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_core_superlu

private

SuperLU core.

Definition at line 488 of file direct_sparse_solver.hpp.

Referenced by FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::name().

◆ _core_umfpack

template<typename Matrix_ , typename Filter_ >

void* FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_core_umfpack

private

UMFPACK core.

Definition at line 490 of file direct_sparse_solver.hpp.

Referenced by FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::name().

◆ _preferred_backend

template<typename Matrix_ , typename Filter_ >

PreferredBackend FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::_preferred_backend

private

preferred backend of runtime at time of object creation

Definition at line 480 of file direct_sparse_solver.hpp.

Referenced by FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::init_symbolic().

◆ _system_filter

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

const FilterType& FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_system_filter

protectedinherited

the system filter

Definition at line 799 of file adp_solver_base.hpp.

Referenced by FEAT::Solver::TpetraSolverBase< Matrix_, Filter_, SolverBase_ >::_download_cor(), and FEAT::Solver::HypreSolverBase< Matrix_, Filter_, SolverBase_ >::_download_cor().

◆ _system_matrix

template<typename Matrix_ , typename Filter_ , typename SolverBase_ = Solver::SolverBase<typename Matrix_::VectorTypeL>>

const MatrixType& FEAT::Solver::ADPSolverBase< Matrix_, Filter_, SolverBase_ >::_system_matrix

protectedinherited

the system matrix

Definition at line 797 of file adp_solver_base.hpp.

◆ have_backend_cudss

template<typename Matrix_ , typename Filter_ >

constexpr bool FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::have_backend_cudss = DSS::have_cudss

staticconstexpr

specifies whether the cuDSS solver backend is available

Definition at line 462 of file direct_sparse_solver.hpp.

◆ have_backend_global

template<typename Matrix_ , typename Filter_ >

constexpr bool FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::have_backend_global = DSS::have_backend_global

staticconstexpr

specifies whether at least one backend for global systems is available

Definition at line 474 of file direct_sparse_solver.hpp.

Referenced by FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::is_available().

◆ have_backend_local

template<typename Matrix_ , typename Filter_ >

constexpr bool FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::have_backend_local = DSS::have_backend_local

staticconstexpr

specifies whether at least one backend for local systems is available

Definition at line 472 of file direct_sparse_solver.hpp.

Referenced by FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::is_available().

◆ have_backend_mkldss

template<typename Matrix_ , typename Filter_ >

constexpr bool FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::have_backend_mkldss = DSS::have_mkldss

staticconstexpr

specifies whether the MKL-DSS solver backend is available

Definition at line 464 of file direct_sparse_solver.hpp.

◆ have_backend_mumps

template<typename Matrix_ , typename Filter_ >

constexpr bool FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::have_backend_mumps = DSS::have_mumps

staticconstexpr

specifies whether the MUMPS solver backend is available

Definition at line 466 of file direct_sparse_solver.hpp.

◆ have_backend_superlu

template<typename Matrix_ , typename Filter_ >

constexpr bool FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::have_backend_superlu = DSS::have_superlu

staticconstexpr

specifies whether the SuperLU solver backend is available

Definition at line 468 of file direct_sparse_solver.hpp.

◆ have_backend_umfpack

template<typename Matrix_ , typename Filter_ >

constexpr bool FEAT::Solver::DirectSparseSolver< Matrix_, Filter_ >::have_backend_umfpack = DSS::have_umfpack

staticconstexpr

specifies whether the UMFPACK solver backend is available

Definition at line 470 of file direct_sparse_solver.hpp.

The documentation for this class was generated from the following file:

kernel/solver/direct_sparse_solver.hpp

Public Types

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ BaseClass

◆ DataType

◆ FilterType

◆ IndexType

◆ MatrixType

◆ VectorType

Constructor & Destructor Documentation

◆ DirectSparseSolver()

◆ ~DirectSparseSolver()

Member Function Documentation

◆ _create_core_cudss()

◆ _create_core_mkldss()

◆ _create_core_mumps()

◆ _create_core_superlu()

◆ _create_core_umfpack()

◆ _download_vector() [1/2]

◆ _download_vector() [2/2]

◆ _filter_mat() [1/7]

◆ _filter_mat() [2/7]

◆ _filter_mat() [3/7]

◆ _filter_mat() [4/7]

◆ _filter_mat() [5/7]

◆ _filter_mat() [6/7]

◆ _filter_mat() [7/7]

◆ _get_adp_block_information() [1/2]

◆ _get_adp_block_information() [2/2]

◆ _get_adp_matrix_num_cols() [1/2]

◆ _get_adp_matrix_num_cols() [2/2]

◆ _get_adp_matrix_num_nzes() [1/2]

◆ _get_adp_matrix_num_nzes() [2/2]

◆ _get_adp_matrix_num_rows() [1/2]

◆ _get_adp_matrix_num_rows() [2/2]

◆ _get_adp_vector_size() [1/2]

◆ _get_adp_vector_size() [2/2]

◆ _get_comm() [1/2]

◆ _get_comm() [2/2]

◆ _get_global_dof_offset() [1/2]

◆ _get_global_dof_offset() [2/2]

◆ _get_num_global_dofs() [1/2]

◆ _get_num_global_dofs() [2/2]

◆ _get_num_global_nonzeros() [1/2]

◆ _get_num_global_nonzeros() [2/2]

◆ _get_num_owned_dofs() [1/2]

◆ _get_num_owned_dofs() [2/2]

◆ _upload_numeric() [1/2]

◆ _upload_numeric() [2/2]

◆ _upload_symbolic() [1/2]

◆ _upload_symbolic() [2/2]

◆ _upload_vector() [1/2]

◆ _upload_vector() [2/2]

◆ apply() [1/2]

◆ apply() [2/2]

◆ clear_allowed_backends()

◆ done()

◆ done_numeric()

◆ done_symbolic()

◆ get_allowed_backends()

◆ get_selected_backend()

◆ init()

◆ init_numeric()

◆ init_symbolic()

◆ is_available()

◆ name()

◆ push_allowed_backend() [1/2]

◆ push_allowed_backend() [2/2]

◆ push_allowed_backend_list() [1/2]

◆ push_allowed_backend_list() [2/2]

Member Data Documentation

◆ _allowed_backends

◆ _comm_self
