FEAT::Xml::MarkupParser Class Reference

XML Markup Parser interface. More...

#include <xml_scanner.hpp>

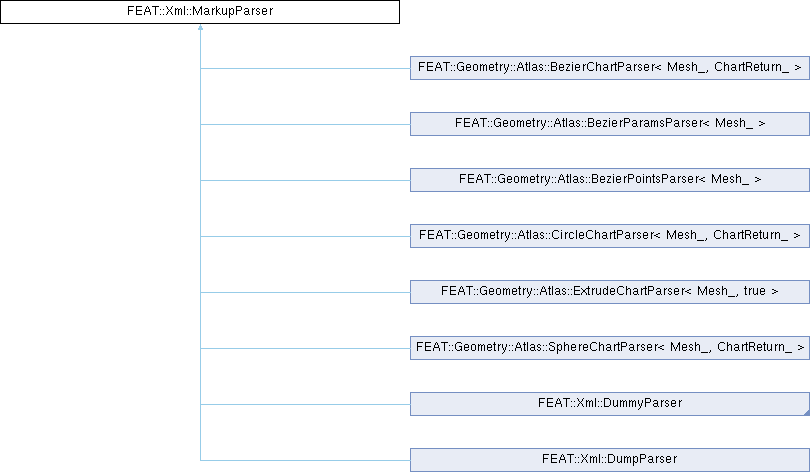

Inheritance diagram for FEAT::Xml::MarkupParser:

Public Member Functions
virtual	~MarkupParser ()
	virtual destructor More...
virtual bool	attribs (std::map< String, bool > &attrs) const =0
	Specifies the mandatory and optional attributes. More...
virtual void	close (int iline, const String &sline)=0
	Closes this markup parser node. More...
virtual bool	content (int iline, const String &sline)=0
	Called to process a content line. More...
virtual void	create (int iline, const String &sline, const String &name, const std::map< String, String > &attrs, bool closed)=0
	Creates this markup parser node. More...
virtual std::shared_ptr< MarkupParser >	markup (int iline, const String &sline, const String &name)=0
	Called to process a child markup node. More...

Detailed Description

XML Markup Parser interface.

This class acts as an interface for all XML markup parsers.

Author

Peter Zajac

Definition at line 148 of file xml_scanner.hpp.

Constructor & Destructor Documentation

~MarkupParser()

virtual FEAT::Xml::MarkupParser::~MarkupParser ( )

inlinevirtual

virtual destructor

Definition at line 152 of file xml_scanner.hpp.

Member Function Documentation

attribs()

virtual bool FEAT::Xml::MarkupParser::attribs ( std::map< String, bool > &  attrs ) const

pure virtual

Specifies the mandatory and optional attributes.

Parameters

[out]

attrs

A transient reference to a map of all supported attribute key names. The second component specifies whether the attribute is mandatory (true) or optional (false).

Returns

true, if the scanner should check for valid arguments, otherwise false.

Implemented in FEAT::Geometry::Atlas::BezierPointsParser< Mesh_ >, FEAT::Geometry::Atlas::BezierParamsParser< Mesh_ >, FEAT::Xml::DummyParser, FEAT::Xml::DumpParser, FEAT::Geometry::Atlas::BezierChartParser< Mesh_, ChartReturn_ >, FEAT::Geometry::Atlas::CircleChartParser< Mesh_, ChartReturn_ >, FEAT::Geometry::Atlas::ExtrudeChartParser< Mesh_, true >, and FEAT::Geometry::Atlas::SphereChartParser< Mesh_, ChartReturn_ >.

close()

virtual void FEAT::Xml::MarkupParser::close ( int  iline, const String &  sline  )

pure virtual

Closes this markup parser node.

Parameters

[in]	iline	The line number of the markup terminator in the XML file.
[in]	sline	The line string of the markup in the XML file.

Implemented in FEAT::Xml::DumpParser, FEAT::Geometry::Atlas::BezierPointsParser< Mesh_ >, FEAT::Geometry::Atlas::BezierParamsParser< Mesh_ >, FEAT::Geometry::Atlas::ExtrudeChartParser< Mesh_, true >, FEAT::Geometry::Atlas::BezierChartParser< Mesh_, ChartReturn_ >, FEAT::Geometry::Atlas::CircleChartParser< Mesh_, ChartReturn_ >, FEAT::Geometry::Atlas::SphereChartParser< Mesh_, ChartReturn_ >, and FEAT::Xml::DummyParser.

content()

virtual bool FEAT::Xml::MarkupParser::content ( int  iline, const String &  sline  )

pure virtual

Called to process a content line.

This function is called by the XML scanner when a content line inside this markup parser node is detected.

Parameters

[in]	iline	The line number of the content line in the XML file.
[in]	sline	The line string of the content line in the XML file.

Returns

true, if the content line was parsed successfully, otherwise false.

Note

Returning false will cause the scanner to throw a Xml::GammarError.

Implemented in FEAT::Geometry::Atlas::BezierPointsParser< Mesh_ >, FEAT::Geometry::Atlas::BezierParamsParser< Mesh_ >, FEAT::Xml::DumpParser, FEAT::Geometry::Atlas::BezierChartParser< Mesh_, ChartReturn_ >, FEAT::Geometry::Atlas::CircleChartParser< Mesh_, ChartReturn_ >, FEAT::Geometry::Atlas::ExtrudeChartParser< Mesh_, true >, FEAT::Geometry::Atlas::SphereChartParser< Mesh_, ChartReturn_ >, and FEAT::Xml::DummyParser.

create()

virtual void FEAT::Xml::MarkupParser::create ( int  iline, const String &  sline, const String &  name, const std::map< String, String > &  attrs, bool  closed  )

pure virtual

Creates this markup parser node.

Parameters

[in]	iline	The line number of the markup in the XML file.
[in]	sline	The line string of the markup in the XML file.
[in]	name	The name of the markup.
[in]	attrs	A transient reference to a map of all attributes of the markup.
[in]	closed	Specifies whether the markup is closed.

Implemented in FEAT::Xml::DumpParser, FEAT::Geometry::Atlas::BezierPointsParser< Mesh_ >, FEAT::Geometry::Atlas::BezierParamsParser< Mesh_ >, FEAT::Geometry::Atlas::BezierChartParser< Mesh_, ChartReturn_ >, FEAT::Geometry::Atlas::CircleChartParser< Mesh_, ChartReturn_ >, FEAT::Geometry::Atlas::ExtrudeChartParser< Mesh_, true >, FEAT::Geometry::Atlas::SphereChartParser< Mesh_, ChartReturn_ >, and FEAT::Xml::DummyParser.

markup()

virtual std::shared_ptr< MarkupParser > FEAT::Xml::MarkupParser::markup ( int  iline, const String &  sline, const String &  name  )

pure virtual

Called to process a child markup node.

This function is called by the XML scanner when a child markup inside this markup parser node is detected.

Parameters

[in]	iline	The line number of the child markup in the XML file.
[in]	sline	The line string of the child markup in the XML file.
[in]	name	The markup name of the child markup.

Returns

A new MarkupParser object if the markup is a valid child or nullptr if a child markup with this name is not supported.

Note

Returning nullptr will cause the scanner to throw a Xml::GammarError.

Implemented in FEAT::Geometry::Atlas::BezierPointsParser< Mesh_ >, FEAT::Geometry::Atlas::BezierParamsParser< Mesh_ >, FEAT::Geometry::Atlas::CircleChartParser< Mesh_, ChartReturn_ >, FEAT::Geometry::Atlas::SphereChartParser< Mesh_, ChartReturn_ >, FEAT::Xml::DummyParser, FEAT::Geometry::Atlas::BezierChartParser< Mesh_, ChartReturn_ >, FEAT::Geometry::Atlas::ExtrudeChartParser< Mesh_, true >, and FEAT::Xml::DumpParser.

---

The documentation for this class was generated from the following file:

• kernel/util/xml_scanner.hpp
