FEAT::Space::DofMappingBase< Space_ > Class Template Reference

Mapping from mesh cells to Dof that have support on them. More...

#include <dof_mapping_base.hpp>

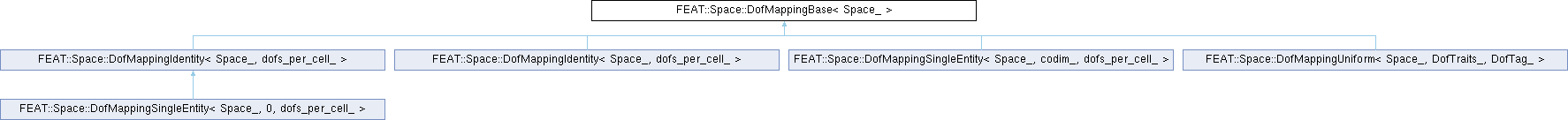

Inheritance diagram for FEAT::Space::DofMappingBase< Space_ >:

Public Types
typedef SpaceType::ShapeType	ShapeType
	shape typedef More...
typedef Space_	SpaceType
	space typedef More...

Public Member Functions
void	finish ()
	Releases the dof-mapping from the current cell. More...
Index	get_current_cell_index () const
	Returns the current cell-index. More...
Index	get_index (int local_dof_idx) const
	Returns the mapped dof index. More...
Index	get_num_global_dofs () const
	Return the number of global dofs. More...
int	get_num_local_dofs () const
	Returns the number of local dofs. More...
void	prepare (Index cell_index)
	Prepares the dof-mapping for a given cell. More...

Protected Member Functions
	DofMappingBase (const SpaceType &space)
	constructor More...

Protected Attributes
Index	_cell_index
	currently active cell index More...
const SpaceType &	_space
	space reference More...

Detailed Description

template<typename Space_>
class FEAT::Space::DofMappingBase< Space_ >

Mapping from mesh cells to Dof that have support on them.

This class acts as a base-class and interface documentation for Finite Element Dof mapping implementations.

In FEAT, every FE basis function is associated with a mesh entity of a certain shape dimension, i.e. vertices, facets or cells. The DofMapping maps a mesh cell (meaning only the highest-dimensional entities of a mesh) to a set of basis functions with nonempty support on the closure of the cell. It does, however, not contain any information about which entities of that cell are associated with which basis function. This is done by the DofAssignment.

See also

DofAssignmentBase

Template Parameters

Space_

The finite element space that this Dof mapping is used by.

Author

Peter Zajac

Definition at line 34 of file dof_mapping_base.hpp.

Member Typedef Documentation

ShapeType

template<typename Space_ >

typedef SpaceType::ShapeType FEAT::Space::DofMappingBase< Space_ >::ShapeType

shape typedef

Definition at line 40 of file dof_mapping_base.hpp.

SpaceType

template<typename Space_ >

typedef Space_ FEAT::Space::DofMappingBase< Space_ >::SpaceType

space typedef

Definition at line 38 of file dof_mapping_base.hpp.

Constructor & Destructor Documentation

DofMappingBase()

template<typename Space_ >

FEAT::Space::DofMappingBase< Space_ >::DofMappingBase ( const SpaceType &  space )

inlineexplicitprotected

constructor

Definition at line 49 of file dof_mapping_base.hpp.

Member Function Documentation

finish()

template<typename Space_ >

void FEAT::Space::DofMappingBase< Space_ >::finish ( )

inline

Releases the dof-mapping from the current cell.

Definition at line 71 of file dof_mapping_base.hpp.

References FEAT::Space::DofMappingBase< Space_ >::_cell_index.

get_current_cell_index()

template<typename Space_ >

Index FEAT::Space::DofMappingBase< Space_ >::get_current_cell_index ( ) const

inline

Returns the current cell-index.

Definition at line 80 of file dof_mapping_base.hpp.

References FEAT::Space::DofMappingBase< Space_ >::_cell_index.

get_index()

template<typename Space_ >

Index FEAT::Space::DofMappingBase< Space_ >::get_index

(

int

local_dof_idx

)

const

Returns the mapped dof index.

Parameters

[in]

local_dof_idx

The index of the local dof whose mapped index is to be returned.

Returns

The mapped dof index.

get_num_global_dofs()

template<typename Space_ >

Index FEAT::Space::DofMappingBase< Space_ >::get_num_global_dofs

(

)

const

Return the number of global dofs.

Returns

The total number of global degress of freedom for the finite element space.

get_num_local_dofs()

template<typename Space_ >

int FEAT::Space::DofMappingBase< Space_ >::get_num_local_dofs

(

)

const

Returns the number of local dofs.

Returns

The total number of local degrees of freedom for the currently active cell.

prepare()

template<typename Space_ >

void FEAT::Space::DofMappingBase< Space_ >::prepare ( Index  cell_index )

inline

Prepares the dof-mapping for a given cell.

Parameters

[in]

cell_index

The index of the cell that is to be used by the dof-mapping.

Definition at line 63 of file dof_mapping_base.hpp.

References FEAT::Space::DofMappingBase< Space_ >::_cell_index.

Referenced by FEAT::Space::DofMappingUniform< Space_, DofTraits_, DofTag_ >::prepare().

Member Data Documentation

_cell_index

template<typename Space_ >

Index FEAT::Space::DofMappingBase< Space_ >::_cell_index

protected

currently active cell index

Definition at line 46 of file dof_mapping_base.hpp.

Referenced by FEAT::Space::DofMappingBase< Space_ >::finish(), FEAT::Space::DofMappingBase< Space_ >::get_current_cell_index(), FEAT::Space::DofMappingIdentity< Space_, dofs_per_cell_ >::get_index(), FEAT::Space::DofMappingSingleEntity< Space_, codim_, dofs_per_cell_ >::get_index(), and FEAT::Space::DofMappingBase< Space_ >::prepare().

_space

template<typename Space_ >

const SpaceType& FEAT::Space::DofMappingBase< Space_ >::_space

protected

space reference

Definition at line 44 of file dof_mapping_base.hpp.

Referenced by FEAT::Space::DofMappingIdentity< Space_, dofs_per_cell_ >::get_num_global_dofs(), FEAT::Space::DofMappingSingleEntity< Space_, codim_, dofs_per_cell_ >::get_num_global_dofs(), FEAT::Space::DofMappingUniform< Space_, DofTraits_, DofTag_ >::get_num_global_dofs(), and FEAT::Space::DofMappingUniform< Space_, DofTraits_, DofTag_ >::prepare().

---

The documentation for this class was generated from the following file:

• kernel/space/dof_mapping_base.hpp
